Re: [PSUBS-MAILIST] how to fit the acrylic dome

[André Eriksen <a.erikse@gmail.com>]

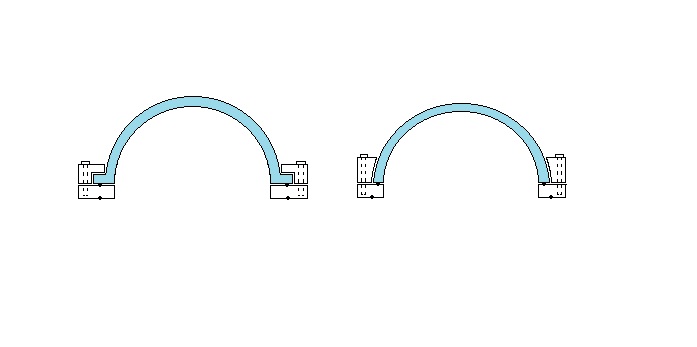

From what you said I made this sketch (attached). Is this a good way to fasten the dome?



-Andrè

2012/6/15 Emile <emile@airesearch.nl>

Hi Andre,



It is not done to drill / tap any holes in a acrylic dome. Stressraiser!

For shallow divers you can glue .

Under high pressures the dome contracts more than the ring

I use a o-ring on the edge and stainless steel bands hold down the dome.



Flange also possible for shallow divers. In the handbook of acrylics are some examples.



Emile



---

Van: owner-personal_submersibles@psubs.org [mailto:owner-personal_submersibles@psubs.org] Namens André Eriksen
Verzonden: vrijdag 15 juni 2012 17:25
Aan: personal_submersibles@psubs.org
Onderwerp: [PSUBS-MAILIST] how to fit the acrylic dome



Hi,



I`m new to this forum, and are planning to build a 3 person sub.



I can`t seem to find any plans or pictures on how to fit the acrylic dome for the hatch. Is it screwed down on flanges with an o-ring underneath, or liquid gasket/glue? I`ve seen some domes without flanges, how do they attach them?



thank you.



-Andrè Eriksen, Norway









Attachment: Akryl dome fitting.jpg
Description: JPEG image
