[PSUBS-MAILIST] Stability & Buoyancy

Hi Alan,

additional the sub can dynamic unstable during surfacing.

There is a lot of water in the free flooding open sail.
If you surface fast and with to small opening in the
bottom of the free flooding sail the extra weight can
move the CG so high that the sub tends to get heavy
side angles during surfacing until the water rush out.

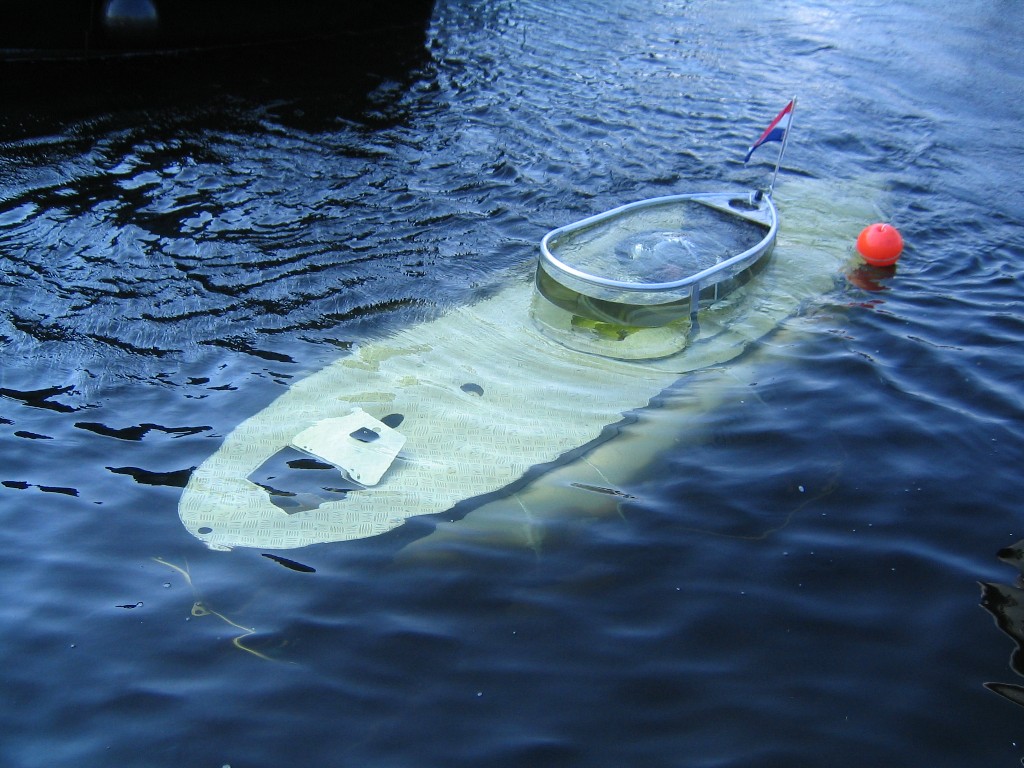

The picture 8382a shows the higher waterlevel during surfacing
in the sail and the MBT sadlle tanks still under water
but for this sub the extra weight was not critical.

But on a military one with there tons of
water in the sail during a fast emergency surfacing
it can be a problem.

By the way Euronaut has no Kingston valve without any problem
and a positve GB alltimes greater than 2".
On dive station or surfaced.
And great openings in the bottom of the sail.

Boats without Kingston valve tends to lost some
bouancy during rough sea. The tanks and the seastage
work like a air pump and some water enter the tanks.

On the otherside a boat with Kingston and a
compressed air blow out system can blow away the
tanks very fast if you forget to open the Kingstons
during blowing the tanks or have a air leak
in the in the pipe to the tanks.

vbr Carsten


"Alan James" <alanlindsayjames at yahoo.com> schrieb:
Hi everyone,
While reading through some background info for the G.L.
certification document, I came across this link with a good
explanation of stability & buoyancy
http://maritime.org/doc/fleetsub/chap5.htm

There is a phenomena described, where submarines can be
unstable to the point of turning over during the transition from
surface to diving & vice versa.
This has to do with the centre of buoyancy moving upward past
the centre of gravity. As it approaches the centre of gravity the
submarine is at it's most vulnerable point.
This would be different for individual designs & a worry if
you dropped your emergency drop weight.
I had been told by a pilot that he never stuffed around while
descending & liked to drop as quick as he could.
I didn't have a full understanding of this & thought there may
be others in the same boat.
Regards Alan




--

Carsten Standfuß
Dipl.Ing.Schiffbau @ Meerestechnik
Heinrich Reck Str.12A
18211 Admannshagen

0172 8464 420
WWW.Euronaut.org
Carsten at euronaut.org
