[PSUBS-MAILIST] Minn Kota 101 - thread spec

[Jon Wallace via Personal_Submersibles]

Why not put one tap mid-section and the other tap at the bell end
housing, avoiding the need for a third hole.  I haven't taken my 101's
apart yet but it looks like there is plenty of room for a tap on the
bell end based upon the exploded parts diagram.  See it at
http://www.northlandmarine.com/images/Riptide/Riptide%202011/Riptide%20Transom%20Mnt%202011/Riptide%20Trans%20101t.pdf

Oil comp may have some issues but the attraction for me is simplicity
and no support components like regulators and air distribution piping.

Jon


On 7/21/2014 5:17 AM, James Frankland via Personal_Submersibles wrote:
> Hi Cliff,,
> Others may disagree with this, but ive got a suggestion. If your oil
> compensating the motors and are going to add the wrap around
> tube\bladder as per Alecs Snoopy, I would suggest, adding a vent hole
> somewhere near the aft bearing.  With my setup, ive put the tube going
> around the motor and its all ok.  But, I just cannot get the last
> dregs of air out.  No matter what I do.  I suspect that its because
> the pipe nipple protrudes a mm or so into the casing and so will not
> allow the last bit of air out.  It really irritates me and I worry
> that the motor is not properly compensated. So, I am going to make a

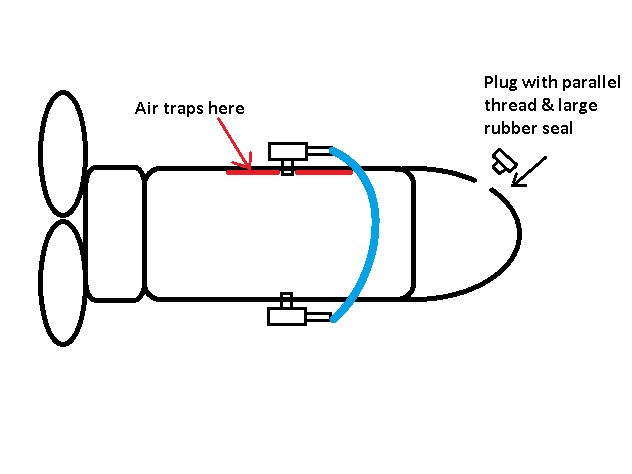

> modification to the motor like this pic.  I think this will work, the
> suspect bit is mating the plug against the slightly domed motor case.
> I think a large rubber washer should seal it.   The i should be able
> to rotate the motor and remove the last dregs of air.  What do you think?
> Thanks
> James
>
>
>

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20140721/8bbb68b6/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/jpeg
Size: 34837 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20140721/8bbb68b6/attachment-0001.jpe>
