Petar,

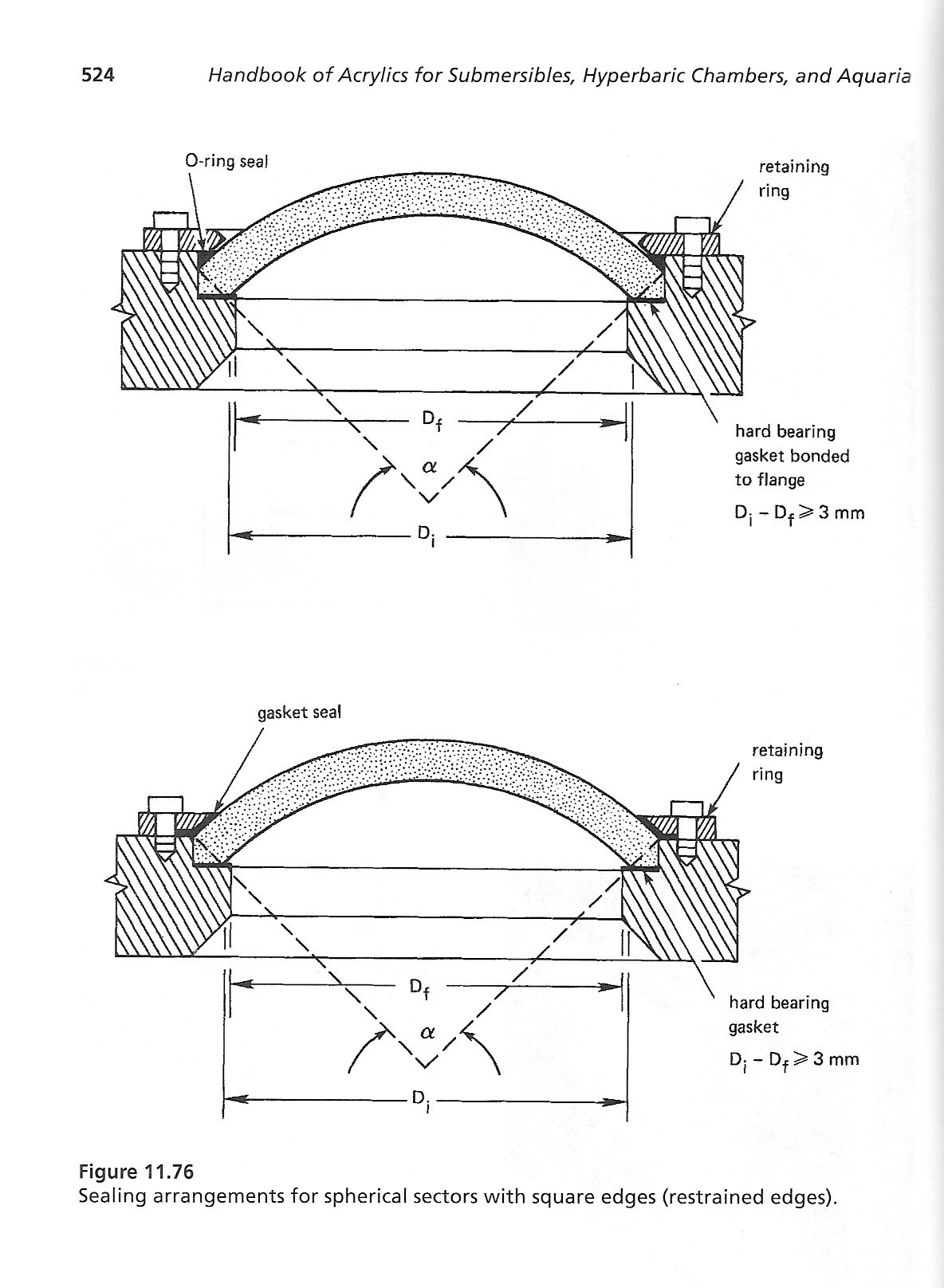

The dome on attached scan has a rectangular seat. But retaining and sealing
is abt. The same.



Emile



  _____

Van: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org]
Namens Petar Topljak via Personal_Submersibles
Verzonden: maandag 12 januari 2015 18:18
Aan: Personal Submersibles General Discussion
Onderwerp: Re: [PSUBS-MAILIST] Greetings



Thank you for a quick response Emile.

Sadly, this book is not avalible in any library known to me in Croatia.

Regards, Petar Topljak

Dana 12. 1. 2015. 17:38 osoba "Emile van Essen via Personal_Submersibles"
<personal_submersibles at psubs.org> napisala je:

Hi Petar,



Welcome. I made an number of submersible dives near Cavtat; great!



In the book "handbook of acrylics" by Jerry Stachiw are also sealing and
retaining options described.

The book is expensive . So the library or scans might be an option.



Regards, Emile van Essen



  _____

Van: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org]
Namens Petar Topljak via Personal_Submersibles
Verzonden: maandag 12 januari 2015 17:10
Aan: Personal_Submersibles at psubs.org
Onderwerp: [PSUBS-MAILIST] Greetings



Hi everyone,

My name is Petar and I am a mechanical engineering student from Croatia. I
was informed about this maillist by James from England who built his own
submersible.

I have a project for my uni, where I have to design acrylic viewport. I
already downloaded ASME PVHO-1-2007 standard, and I decided to go with
spherical sector with conical edge viewport. I finished all of the
calculations but ran into problems with sealing arrangement and retaining
ring on this type of window.
I don't know how to arrange seals, and the picture in standard is not very
informative, so any kind of help will be precious

Kind regards, Petar Topljak
