[PSUBS-MAILIST] Main Ballast Vent "T".

[James Frankland via Personal_Submersibles]

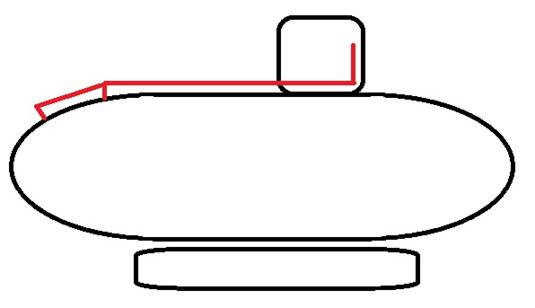

Hi Hugh,  Drawing is not to scale or anything, it was just to give you an
idea.  Anyway, its going in this weekend.  I know where the bubble is.  I
think maybe my tanks are not as steep a profile as original Kittredge
ones.  Maybe that's why I get the bubble.  Anyway, im pretty sure this will
cure the issue.

Regards
James

On 29 July 2015 at 21:58, Hugh Fulton via Personal_Submersibles <
personal_submersibles at psubs.org> wrote:

> Hi James.
>
> Turn your drawing at the angle you think you want, draw a line horizontal,
> then see if the outlet is above the bubble.
>
> Hugh.
>
>
>
>
>
> *From:* Personal_Submersibles [mailto:
> personal_submersibles-bounces at psubs.org] *On Behalf Of *James Frankland
> via Personal_Submersibles
> *Sent:* Thursday, 30 July 2015 1:11 a.m.
> *To:* Personal Submersibles General Discussion
> *Subject:* [PSUBS-MAILIST] Main Ballast Vent "T".
>
>
>
> Hi All,
>
>
>
> Im going to T in another vent pipe into my main ballast tank at the back.
> Unless I submerge perfectly straight, I get a bubble stuck in either the
> front or rear tank.
>
>
>
> If I T in this vent extension to the existing line, I can dive nose first
> and still get the bubble out.  I cant see anything wrong with this, but I
> though id ask in case anyone has any thoughts?
> Thanks
>
> James
>
>
>
>
> ​
>
> _______________________________________________
> Personal_Submersibles mailing list
> Personal_Submersibles at psubs.org
> http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
>
>
