[PSUBS-MAILIST] Alec's new sub

[Alec Smyth via Personal_Submersibles]

Hi Pete,

Wow, I'll try to answer those!

Not sure about Woodstock. How about Naughtylus?
The service panels are 1/8" ABS. The bow one will be fiberglass, it has to
be stronger.
Deck grating is fiberglass molded grating such as is used for catwalks in
factories or on oil rigs.
The white floats are #714 from http://trawlworks.com/floats.html. Good to
800m!
Those are four MBTs.
I can change HP tanks in the water. The deck doors behind the coning tower
lead to the tanks.
Drop weight is variable - just add or remove dumbbell disks as desired.

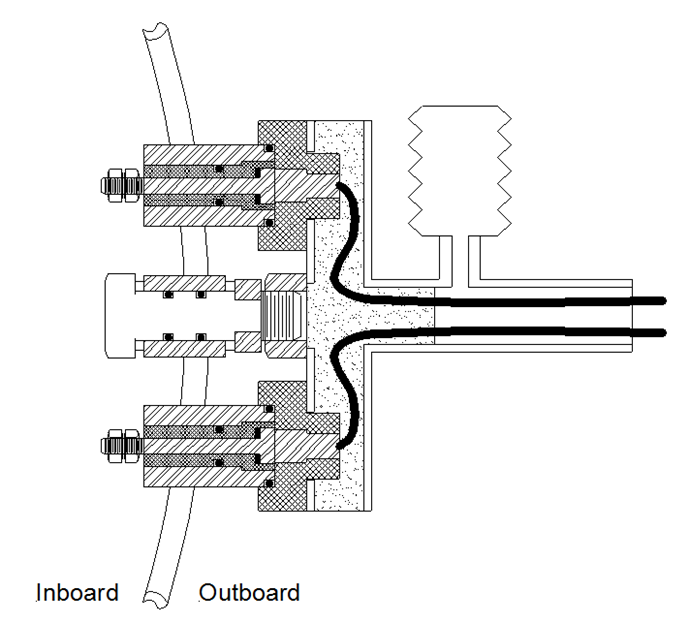

The stainless thruster mount is rectangular tube. Drawing pasted below.
This probably requires some explanation...
The old coning tower is still here in a corner, but its useless unless you
know how to dislocate your shoulder at will. It has an ergonomic problem, I
can fit through the opening but I can't put my elbow in front of my body to
open or close the hatch, and I'm relatively skinny. I think its only use
would be to cut out the viewport seats for recycling them in someone else's
tower.


Best,

Alec



[image: Inline image 1]



On Sun, Jun 28, 2015 at 11:27 AM, Pete Niedermayr via Personal_Submersibles
<personal_submersibles at psubs.org> wrote:

> Thanks Alec. I've been waiting for you to post some pics after that teaser
> you posted a while back.
>
> I have a few questions.
>
> How about Woodstock
> What are the service panels made of ?
> What is the deck grate made of ?
> What size are the stern floats ?
> Do you have 4 saddle tanks ?
> Can you change the HP tanks with the boat in the water  ?
> What is your total drop weight ?
> What is the Stainless ? rectangular bar attached to thrusters ?
> Could you share a drawing of the thruster jettisoning mechanism ?
> What happened to your conning tower ? Is it for sale ?
>
> Thanks Pete
> --------------------------------------------
> On Sat, 6/27/15, Alec Smyth via Personal_Submersibles <
> personal_submersibles at psubs.org> wrote:
>
>  Subject: [PSUBS-MAILIST] Alec's new sub
>  To: "Personal Submersibles General Discussion" <
> personal_submersibles at psubs.org>
>  Date: Saturday, June 27, 2015, 9:40 PM
>
>  Hey everyone, I'm
>  breaking cover with the project sub. It is in need of a
>  name. If the pictures inspire any thoughts that are not
>  rude, I'm all ears for suggested names!
>  http://www.psubs.org/projects/1234567810/newsub/
>
>
>  Best,
>  Alec
