Hank, I need penetrators for 36vdc power to motors (50amp), 12vdc power
to lights (20amp), and other small electronic sensors.   Any thoughts

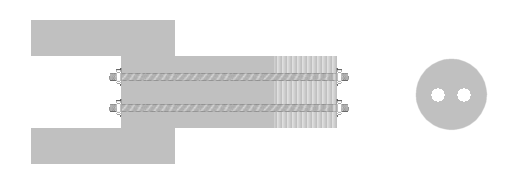

about delron or nylon as a body for machining.  Attached is a design for
threaded rod through delron that I came up.  The nuts on the threaded
rod probably not necessary if locktite or epoxy is used on the threads
before driving it into the thru-hull body.

Jon



On 2/6/2016 2:24 PM, hank pronk via Personal_Submersibles wrote:
> Jon,
> What do you have to work with in terms of hole in hull. What amp are
> you trying to run through.
> Hank
>
>
