[PSUBS-MAILIST] HY steel

Sean T. Stevenson via Personal_Submersibles personal_submersibles at psubs.org
Fri Feb 19 18:07:07 EST 2016


On 2016-02-19 15:16, hank pronk via Personal_Submersibles wrote:
> Whew!  I was just comparing to the first program it it don't jive ;-)
> Hank

Okay, so I found the error in the calculated limit pressures (a missing
division by 2 in one of the calculations), so now the MAWP correctly
corresponds to the pressure at the working depth.  Thankfully, that
number was not affected.  How does this compare to your previous numbers?

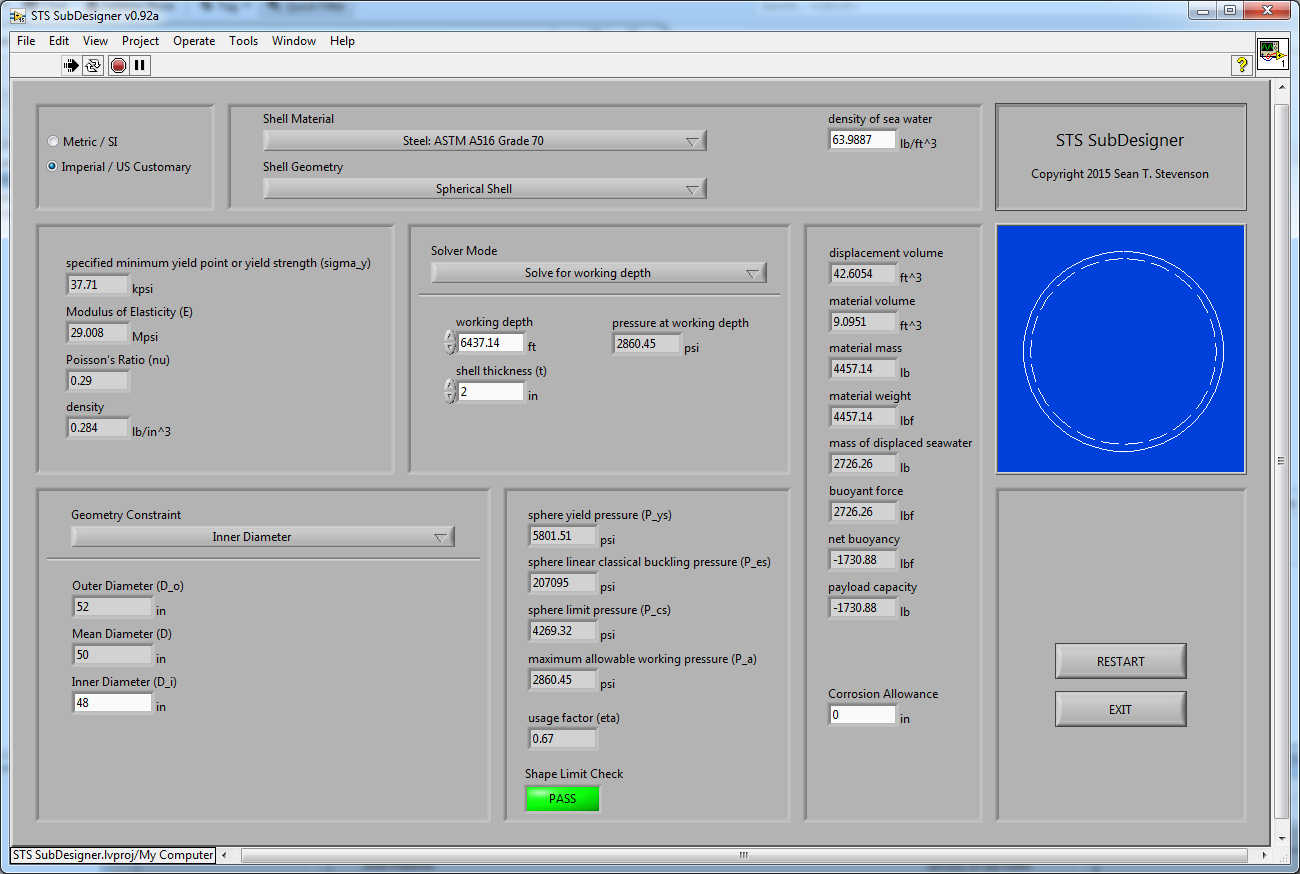

The A516 Gr.70:




The HY-80:

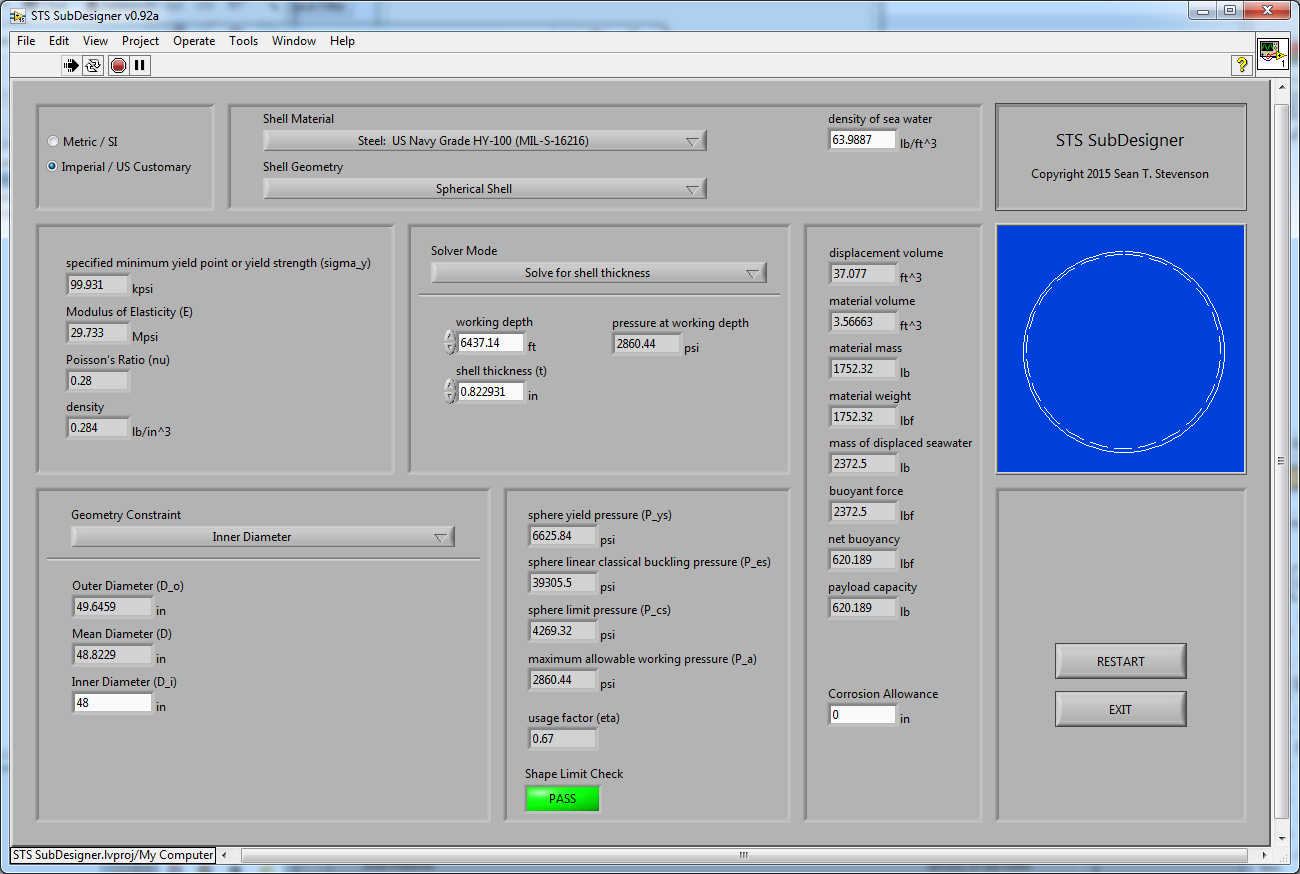

and the HY-100:



Sean

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160219/65cd3d34/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 1.jpg
Type: image/jpeg
Size: 104744 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160219/65cd3d34/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 2.jpg
Type: image/jpeg
Size: 105598 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160219/65cd3d34/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 3.jpg
Type: image/jpeg
Size: 105316 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20160219/65cd3d34/attachment-0005.jpg>
