[PSUBS-MAILIST] sub launch

T Novak via Personal_Submersibles personal_submersibles at psubs.org
Sun Oct 16 23:37:33 EDT 2016


Hank,

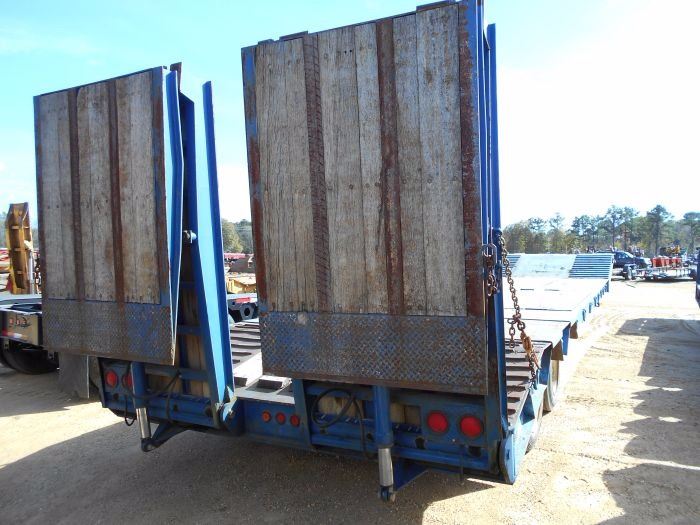

If the sub will be float clear of the bottom within reach of an A-frame crane on the trailer, would a double beavertail (photo) work for you instead of the crane? A double, or triple, beavertail may be sufficient to roll the sub off into sufficiently deep water.  Rather than rollers on the trailer, perhaps rollers on the sub's skids that would then match up with gutter tracks on the beavertail and trailer bed?  At least one psub out there has rollers on its skids. The skids should also have a ski-tip on each end to allow the winch to drag the sub through the mud-sand substrate to launch and recover.

Tim



From: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org] On Behalf Of hank pronk via Personal_Submersibles
Sent: Sunday, October 16, 2016 2:42 PM
To: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Subject: Re: [PSUBS-MAILIST] sub launch



My floating launch cart was better on paper than in the water lol.  I don't like the idea of temporary lift from bags, I think it will tip over.

I am thinking about a drop down beavertail, and hydraulic driven rollers.  I am sure there will be a new idea tomorrow.

Hank



On Sunday, October 16, 2016 3:05 PM, Alan via Personal_Submersibles <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> > wrote:



Yes, you don't want it coming off the trailer & sitting in the mud.

What happened to your floating trailer idea? Or can you fit air bags low down

on the sub, just to aid buoyancy for tricky launching.

   Ok here's another idea that you are well capable of implementing..... you

have a floating trailer with pontoons down either side & twin outboards on the

end of the pontoons. You drive your trailer in far enough to get the props under,

then use outboard power to pull the trailer out till it's floating then use it as a tender

to get to your dive spot.!

Alan

Sent from my iPad


On 17/10/2016, at 9:16 am, hank pronk via Personal_Submersibles <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> > wrote:

Alan,

That would work if the sub had a raked front end or the trailer had a beavertail.  Not a bad solution indeed, the trailer would need full rollers for the sub to roll off.  Gamma has a raked guard now, hmmmm you got me thinking, might be less work.  I am not in love with the sub sitting on rollers though.

The lake has not enough depth at the end of the ramp or further out.  The sub could cruise out but it would be close to hitting bottom.

Hank



On Sunday, October 16, 2016 1:30 PM, Alan via Personal_Submersibles <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> > wrote:



Just googled this idea for a shallow launch & wondered if a more

beefed up version would help. ( 2 parts to the video)

https://m.youtube.com/watch?v=47y0KNSvUgs

Alan



Sent from my iPad


On 17/10/2016, at 6:28 am, hank pronk via Personal_Submersibles <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> > wrote:

There is a real nice lake 20 minutes from home that I can't get in, (Columbia Lake)  yes the start of the mighty Columbia river.    The A frame will allow me to dive there.

Hank



On Sunday, October 16, 2016 11:22 AM, Brian Cox via Personal_Submersibles <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> > wrote:



Interesting idea !

--- personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org>  wrote:

From: hank pronk via Personal_Submersibles <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> >
To: Personal Submersibles General Discussion <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> >
Subject: [PSUBS-MAILIST] sub launch
Date: Sun, 16 Oct 2016 16:18:43 +0000 (UTC)

Hi all,

I have been pondering the age old problem of launching in shallow water.  I am making new fibreglass MBT's for Gamma in a few weeks or so, I will increase the diameter to give me more free board.  The steel tanks are a bit to heavy and could use more volume.  Also the thruster tubes will be vectored in the new tanks.

But that will only help with launching in shallow water a bit.  I am thinking that typically the water is deep enough for the sub alone without the trailer.  So my plan is to install an A frame on the trailer that can lift the sub when it is backed into the water.  The sub is light at this point, so lifting it off the trailer is easy and then the A frame tilts back dragging the sub off the trailer.  To load the sub, just drive it up to the back of the trailer and hook the cable to the lifting eye, then tilt the A frame forward, it lifts the sub and drags it onto the trailer.  I figure I will need a roller on the end of the trailer to help the sub slide ahead.

Easy Peezy

Hank
