[PSUBS-MAILIST] lung powered scrubber

Cliff Redus via Personal_Submersibles personal_submersibles at psubs.org
Sun Apr 23 21:28:42 EDT 2017


nice

On Sun, Apr 23, 2017 at 7:44 PM, james cottrell via Personal_Submersibles <
personal_submersibles at psubs.org> wrote:

> https://www.amronintl.com/downloads/dl/file/id/125/
> product/12731/2011_amron_international_catalog_page_46.pdf
>
> ------------------------------
> *From:* james cottrell via Personal_Submersibles <
> personal_submersibles at psubs.org>
> *To:* Personal Submersibles General Discussion <
> personal_submersibles at psubs.org>
> *Sent:* Sunday, April 23, 2017 5:39 PM
> *Subject:* Re: [PSUBS-MAILIST] Co2 scrubbers
>
> Hi Cliff,
> Thanks for the excellent info. Great research. If I could add a couple of
> things they would be-
>
> Pushing air through absorbent vs pulling air has different effects too.
> Pushing air through with a blower has the benefit of slightly higher
> pressure in the media which can yield more efficiency compared to drawing
> air through which lowers pressure.
> However, too much airflow can cause the the media to dry out and lose
> effectiveness. Humidity may have to be controlled within limits.
> Pushing air through can also cause uneven distribution and poor
> performance depending on scrubber design.
>
> So the challenges are to keep humidity within limits, air flow sufficient
> with even distribution all without exceeding available power over duration
> of dive (especially in an emergency).
>
> For these reasons, lung powered devices are great as a back up. The lungs
> provide the airflow and the humidity. If the unit is made from clear
> acrylic, it is possible to use color changing media.
> One last thought- Absorbent cartridges (like micro-pore re-breather
> cartridges) can make it easier to change used up media in the sub during an
> emergency than trying to empty and replace granules. Just pull out the old
> cartridge, insert the new one and continue breathing.
>
> Greg C
> ------------------------------
> *From:* Cliff Redus via Personal_Submersibles <
> personal_submersibles at psubs.org>
> *To:* Personal Submersibles General Discussion <
> personal_submersibles at psubs.org>
> *Sent:* Sunday, April 23, 2017 1:17 PM
> *Subject:* Re: [PSUBS-MAILIST] Co2 scrubbers on eBay
>
> To elaborate a bit on Alec's comments, a few years back I did some work
> the scrubber for my one-man boat and came away with some conclusions.  The
> first was that a radial design was better than an axial design for air flow
> throws the absorbent and the second was that the goldilocks rule applies
> for fan/blower associated with the scrubber.  Engineers make a
> distinction on equipment used to compress air.  They define a parameter
> known as the specific ratio which is defined as the discharge pressure
> divided by the supply pressure where each pressure is in terms of absolute
> pressure rather than gage pressure.  If the device has a specific ratio
> less than 1.1, they call it fan, if it has a specific ratio greater than
> 1.2 they call it compressor and if it has a specific ration between 1.11
> and 1.2, it is a blower.  What I found from my testing on the scrubber
> was that fans like you would typically see on PC are axial flow and these
> are designed for high flow rates but low head. When you try and use them to
> push air through the CO2 absorbent, they just don't have enough head and
> the resulting flowrate is very low.  In this case they are not operating
> anywhere near their best efficiency point (BEP).  What I found worked
> better were squirrel cage blowers. These are designed for lower flow rates
> than PC axial fans but with more head.  I am sure there are many models
> of squirrel blade blowers that would work but the model I use is from
> Papst, model RL90-18/24.  This blower operates off 24VDC and has a power
> rating of 7.5 W which translates to 0.31 amps.  If you look on ebay,
> these blowers come up all the time.  Back to the goldilocks rule;  to
> meet ABS rules, you have to demonstrate that your life support system will
> operate through the the emergency time period which is 72 hours on the
> backup battery.  The current during this period is known as the “Hotel
> Load” for obvious reasons.  When I tested axial PC fans, they were great
> on battery endurance because they pull a very low current but they did not
> work well because they did not have enough head to overcome the pressure
> drop through the CO2 absorbent material , SodaSorb HP in my case.   This
> showed up as having erratic CO2 levels in the boat and not being able to
> sustain concentrations less than ABS required maximum of 5000 ppm (1/2%).
> When I tried larger axial fans like you would use for a bilge fan, the
> unit would keep the CO2 level below the 5000 ppm limit but they pulled way
> much current and  would not last anywhere near the 80 hours.  The Papst,
> model RL90-18/24 squirrel cage blower turned out to be  perfect with
> enough head to circulated  the cabin air  to keep the CO2 level typically
> below 2000 ppm but also because they only pull 0.31 amps.  This blower
> did not let me meet the 72 ABS endurance limit but got me close.  Below

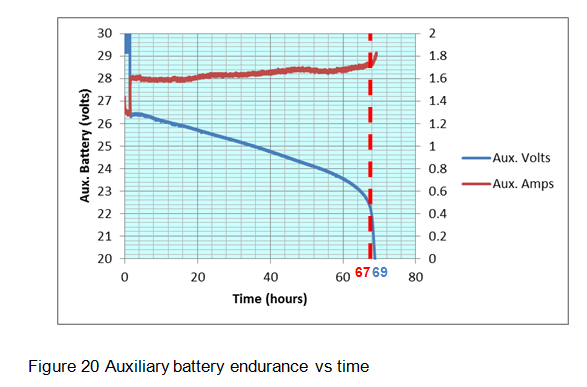

> is a graph of hotel load current through my backup battery and the voltage
> across the backup battery as a function of time on a life support test in
> my boat.  You can see from the graph at about 69 hours into the test the
> backup battery was exhausted.  Also the hotel load started at about 1.6
> amps but slowly climbed to 1.7 amps over the 69 hours.  This hotel load
> was a little higher than the 1.5 amps that I had designed around.  I need
> to go back and look at the contributors to this hotel load and see if I can
> reduce.  I am happy with the 69 hours because during a real emergency
> like be stranded on the bottom due to entanglement, I could utilize at
> least some of the main battery.  For reference, the backup battery
> consist of two AGM  100 Ah battery.  If you divide the capacity by the
> hotel load you get the expected endurance of 100Ahr/1.65A is 61 hours so my
> 69 hours did better than expected.
> .
>
> [image: Inline image 2]
>
>
> Cliff
>
>
>
>
>
> On Sat, Apr 22, 2017 at 6:07 PM, Alec Smyth via Personal_Submersibles <
> personal_submersibles at psubs.org> wrote:
>
> Hi Brian,
>
> If by "straight flow fan" you mean the geometry you would see on a
> computer cooling fan for instance, they are way less efficient for this
> purpose. I believe the reason is they move good volumes of air but develop
> very little pressure. I've tested both kinds, and the sort I'm using now
> has much better performance. Cliff has done similar tests and had the same
> results.
>
> Best,
>
> Alec
>
> On Sat, Apr 22, 2017 at 6:08 PM, Brian Hughes via Personal_Submersibles <personal_submersibles at psubs.
> org <personal_submersibles at psubs.org>> wrote:
>
> Alec,
> Just ordered a tank holder that has two bungies about an inch apart, used
> to strap tanks down on a boat. I'm thinking I can hang this scrubber from
> the roof using the aft most reinforcing ring, holding it up in the middle.
> If it works, straight flow fan.
>
> ______________________________ _________________
> Personal_Submersibles mailing list
> Personal_Submersibles at psubs.or g <Personal_Submersibles at psubs.org>
> http://www.psubs.org/mailman/l istinfo.cgi/personal_submersib les
> <http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
>
>
>
> ______________________________ _________________
> Personal_Submersibles mailing list
> Personal_Submersibles at psubs. org <Personal_Submersibles at psubs.org>
> http://www.psubs.org/mailman/ listinfo.cgi/personal_ submersibles
> <http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles>
>
>
> _______________________________________________
> Personal_Submersibles mailing list
> Personal_Submersibles at psubs.org
> http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
>
>
> _______________________________________________
> Personal_Submersibles mailing list
> Personal_Submersibles at psubs.org
> http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
>
>
>
> _______________________________________________
> Personal_Submersibles mailing list
> Personal_Submersibles at psubs.org
> http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
>
>
