[PSUBS-MAILIST] O-ring Question

[Alan James via Personal_Submersibles]

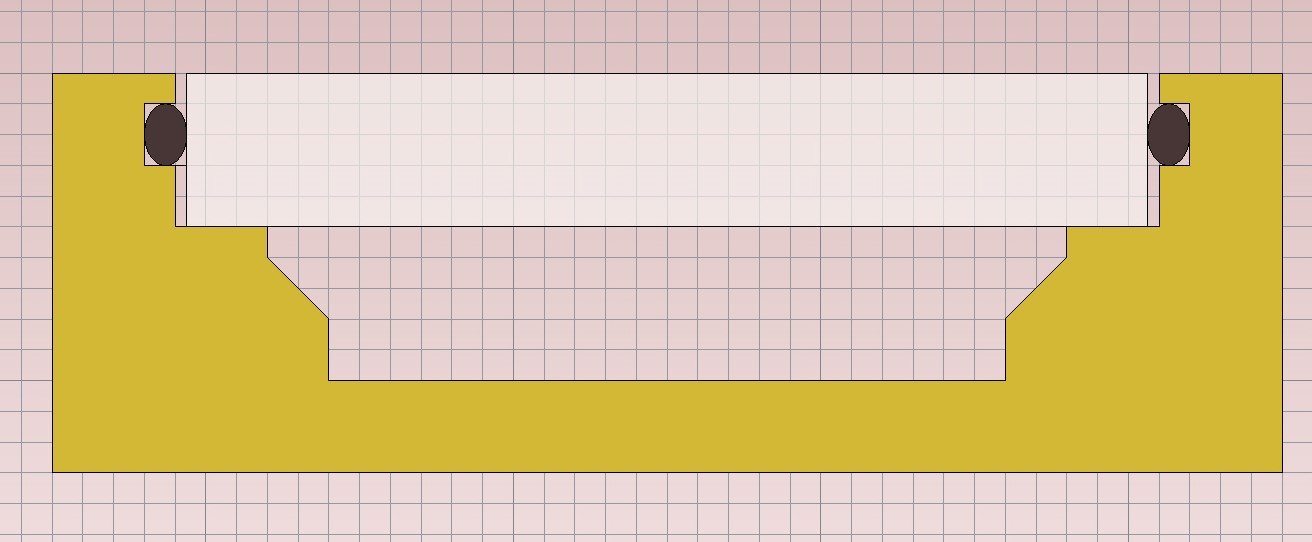

 Hi,am having trouble Googling an answer to this question.   I have an O-ring groove in the bore of my light housing, sealingbetween the bore & the side of my acrylic lens as per attached diagram.On a piston O-ring groove it calls for an optimal 2% stretch & not more than 5%.I can't find any reference to what stretch if any should be, if any, for an o-ringin a bore groove. I did see that in a rotary application they don't advice thattheir should be any pressure on the rotating rod.Should I be designing so that the o-ring will have a 2% stretch around the lens?Thanks, Alan
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20170206/531b29d3/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: LIGHT 0-RING.jpg
Type: image/jpeg
Size: 106438 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20170206/531b29d3/attachment-0001.jpg>
