[PSUBS-MAILIST] Fw: actuator

[hank pronk via Personal_Submersibles]

 David,I did not modify an existing electric actuator.  I modified an air cylinder by installing a gear head motor inside with a threaded rod.I am loading a video on youtube right now so you can see the performance.  I can make you a couple when your ready and I have perfected them.  I have a pressure chamber plenty bit for the actuator that can test to 5,000 feet.Hank
    On Sunday, October 22, 2017, 11:18:33 AM MDT, David Colombo via Personal_Submersibles <personal_submersibles at psubs.org> wrote:


Hank,  how did you modify it? Have you tested it for depth rating? I need a couple for 600 ft and a rainy day project.
On Oct 22, 2017 9:37 AM, "hank pronk via Personal_Submersibles" <personal_submersibles at psubs.org> wrote:

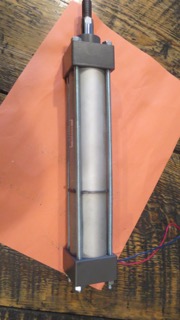

 Hi All,Here is a picture of my first electric liner actuator that is fully submersible.  The actuator can lift 50lbs  at 1 inch per second approximately.  The actuator cost me 50 dollars Canadian to make.  This one has a 4 inch stroke and is well suited for the second sage on the manipulator.    I can either air compensate  or oil compensate the actuator.  I can also put 160 psi inside permanently and use with no compensation to an undetermined depth.  Hank
   ----- Forwarded Message ----- From: hank pronk <hankpronk at live.ca>To: hanker_20032000 at yahoo.ca <hanker_20032000 at yahoo.ca>Sent: Sunday, October 22, 2017, 10:24:59 AM MDTSubject: Fw: actuator





From: xxx xxxxx <mp13 at live.ca>
Sent: October 22, 2017 10:23 AM
To: Hendrik
Subject: actuator
