[PSUBS-MAILIST] window opening

[via Personal_Submersibles]

Hank,

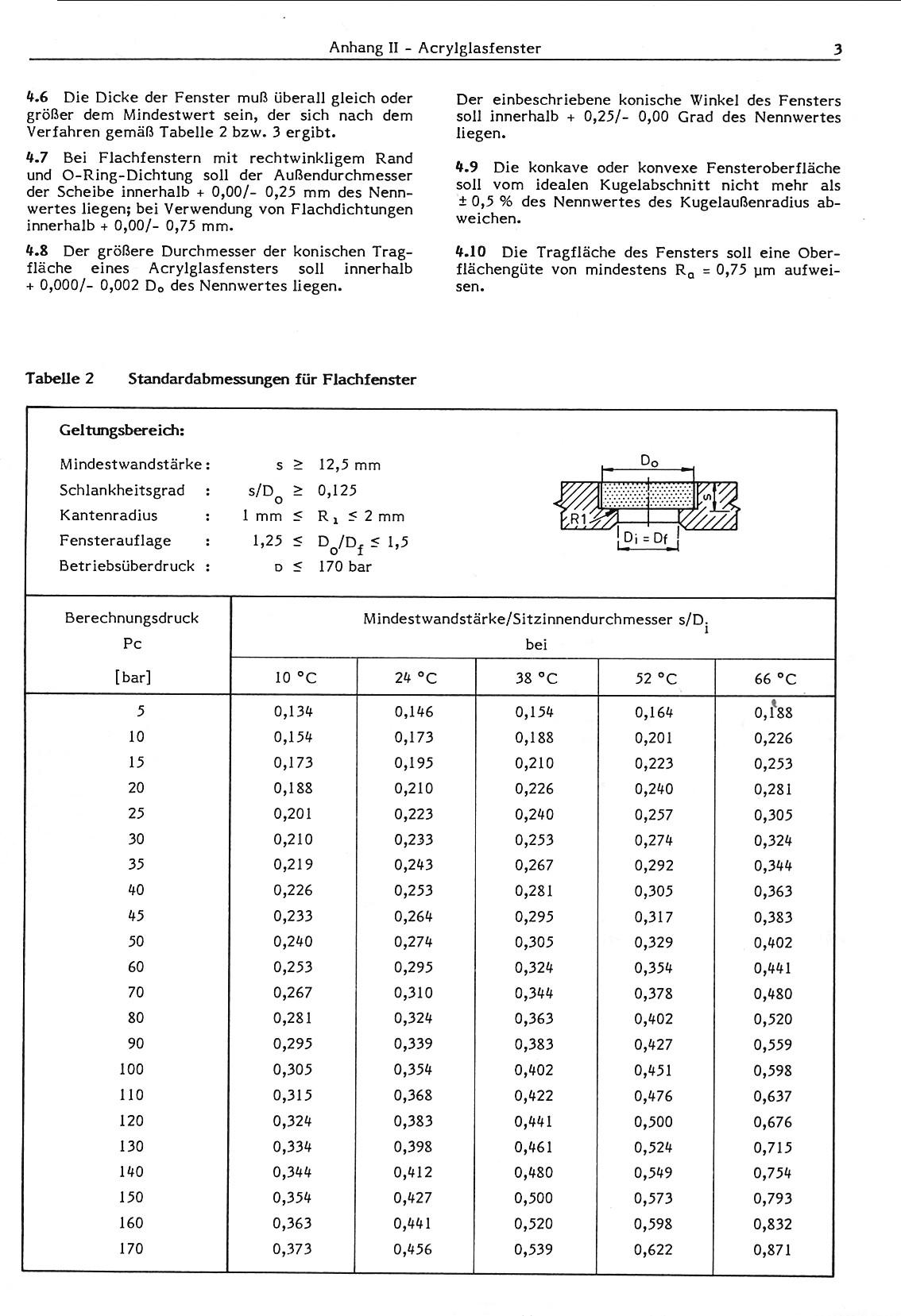

Find a useful table from GL attached. In German but you wil get the point.

Designpressure in relation to S/Di  Note the temperature influence.



Br, Emile



Van: Personal_Submersibles <personal_submersibles-bounces at psubs.org> Namens hank pronk via Personal_Submersibles
Verzonden: zaterdag 14 juli 2018 01:09
Aan: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Onderwerp: [PSUBS-MAILIST] window opening



Hi All,

I need help to figure out the depth rating of my port in E3000.  Right now it is a copy of a  P6 port at 14 inches od and 6 in ID and 3 inches thick.  I want to open the port frame up to 8 inches ID from 6 inches ID.  The thickness of the port will reduce by about 1\4 inch.  I need to know how much this will impact the depth rating.

Hank

-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20180714/84367c67/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AcrylicportholesGermanischerLloyd01.jpg
Type: image/jpeg
Size: 233949 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20180714/84367c67/attachment-0001.jpg>
