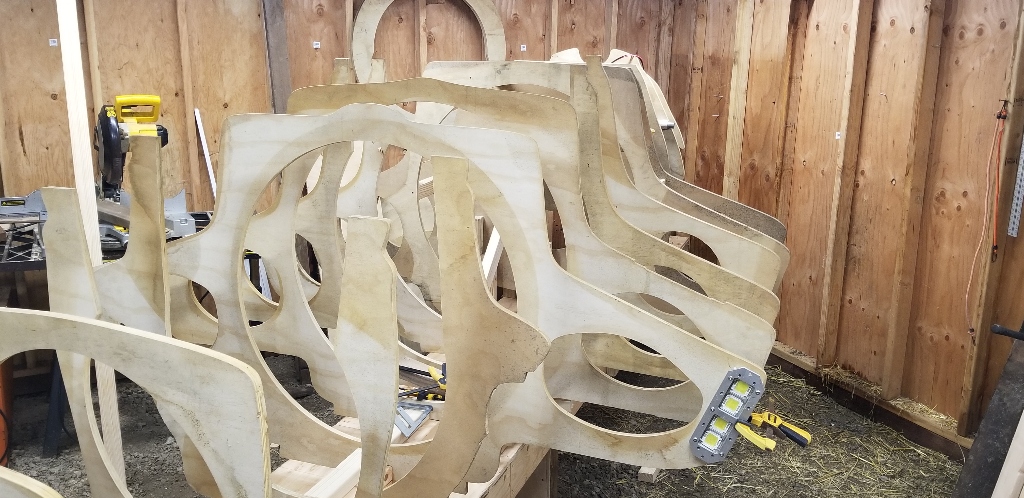

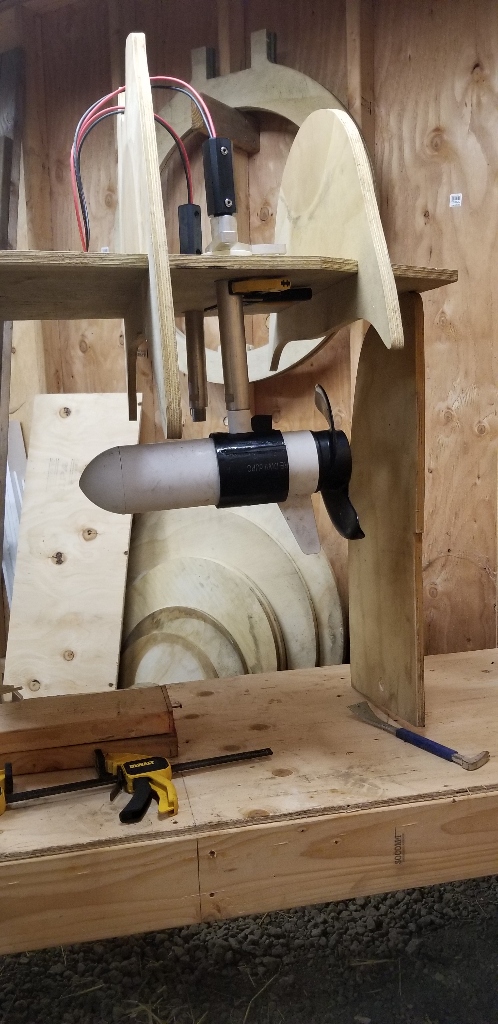

Hi guys, working on the exoskeleton for the SeaQuestor, dry fitting the

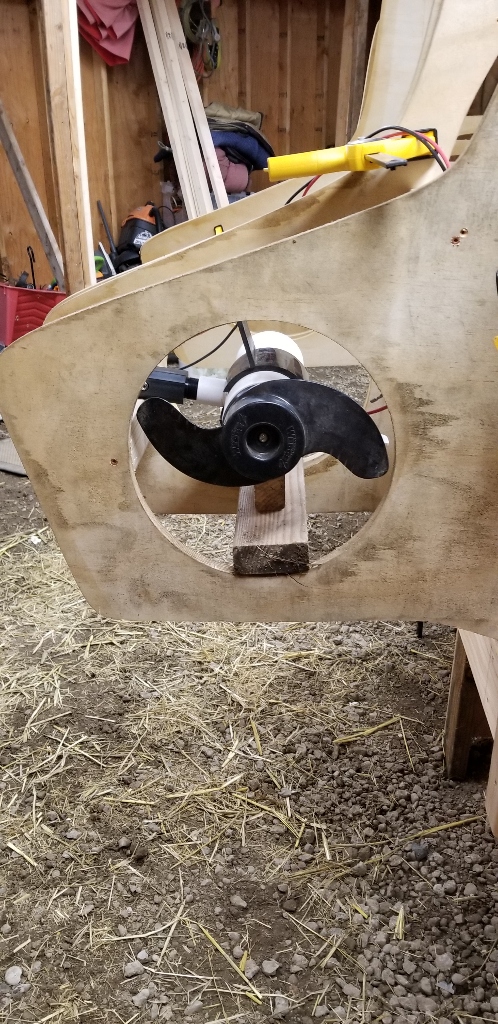

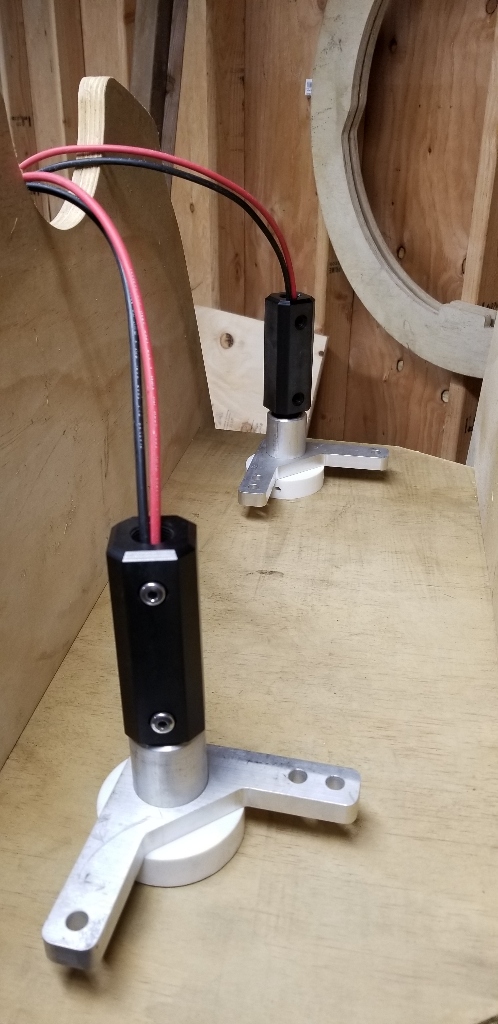

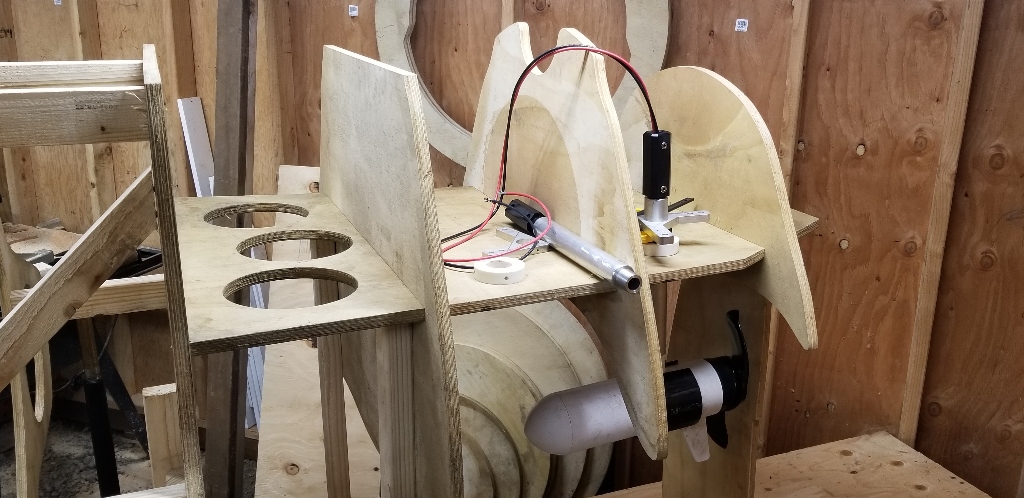

rear thrusters with the new machined mount tubes, horizontal wing

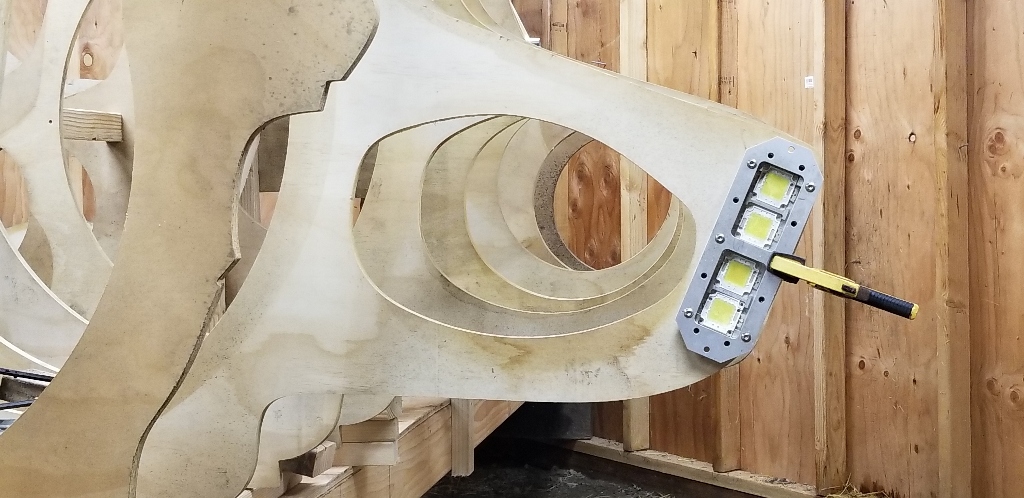

thrusters,  and forward wing lights. The rear thruster assembly includes a
segment with external ports for air compensatation and future sensors. My
thru hull penatration plates are at the shop having final machining and
shoud be ready in a week. With a total of 30 port locatations I have plenty

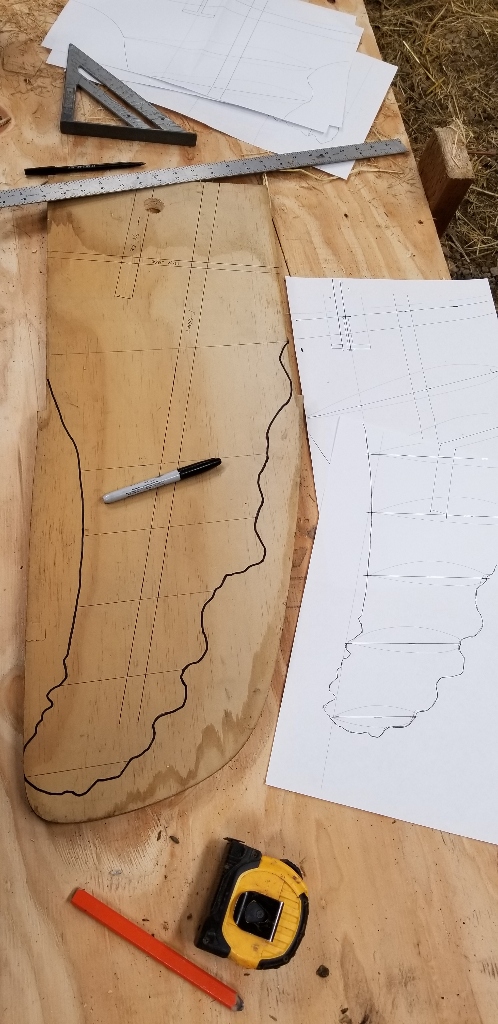

for future connections. I also get to make a few design esthetic changes as
the cnc ribs were cut from my 3d model 1 year ago and it did not reflect
recent revisions. But thats half the fun of design. Build a mock up and

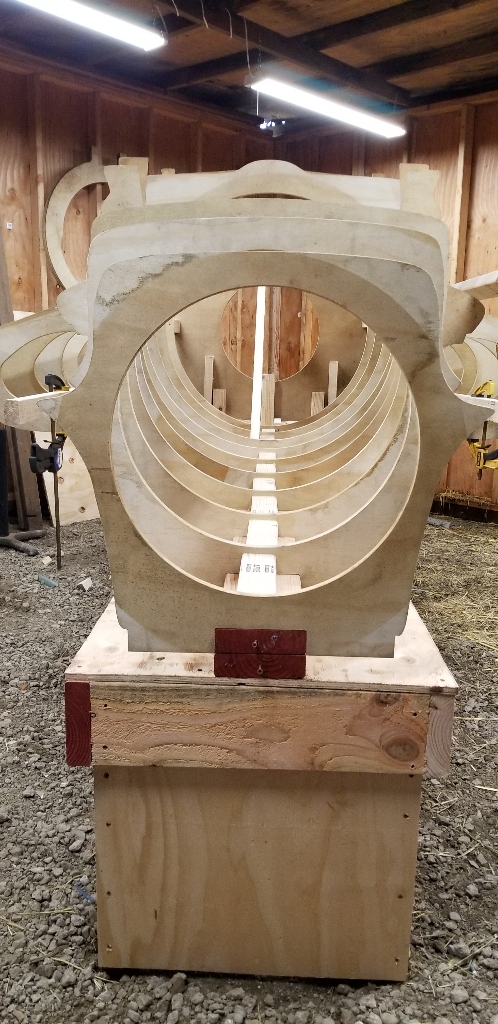

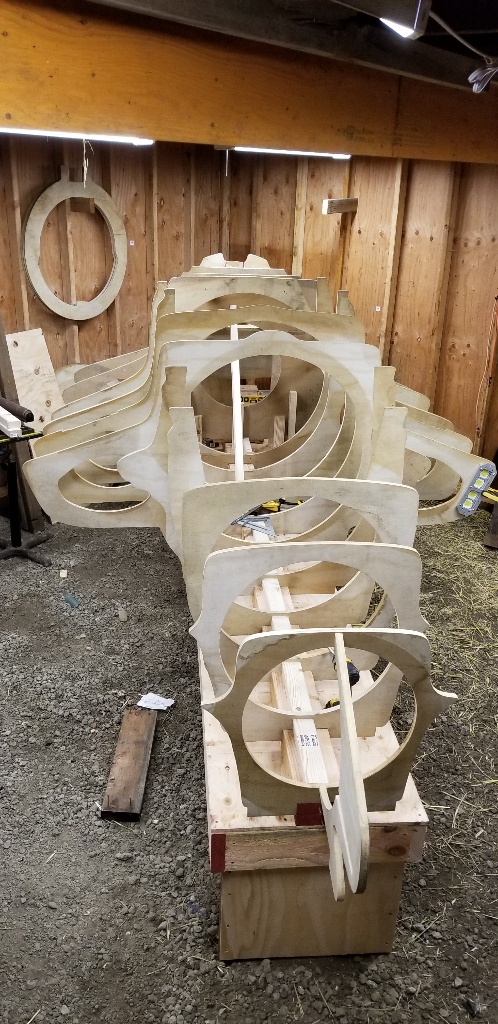

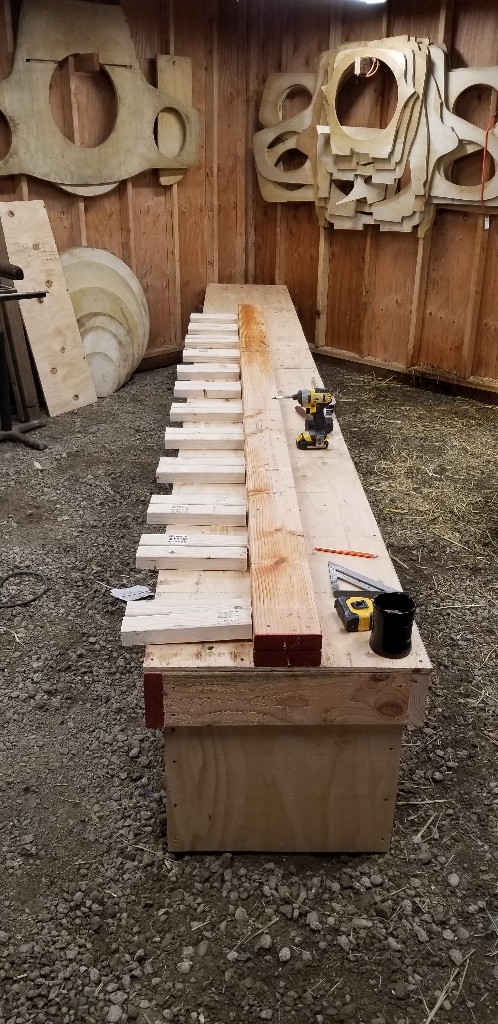

then make refinements. I hope to have the full set of rib stations adjusted
and locked into position on the keel stand this weekend so i can start the
foam cutting.
Best Regards,
David
