[PSUBS-MAILIST] K250/350 qustion

[via Personal_Submersibles]

Thanks James!



Was wondering how the venting was done.



Please give greetings to Antoine (for the others: the guy from the human powered pilotfish project)



BR, Emile



Van: Personal_Submersibles <personal_submersibles-bounces at psubs.org> Namens James Frankland via Personal_Submersibles
Verzonden: dinsdag 8 augustus 2023 15:47
Aan: Personal Submersibles General Discussion <personal_submersibles at psubs.org>
Onderwerp: Re: [PSUBS-MAILIST] K250/350 qustion

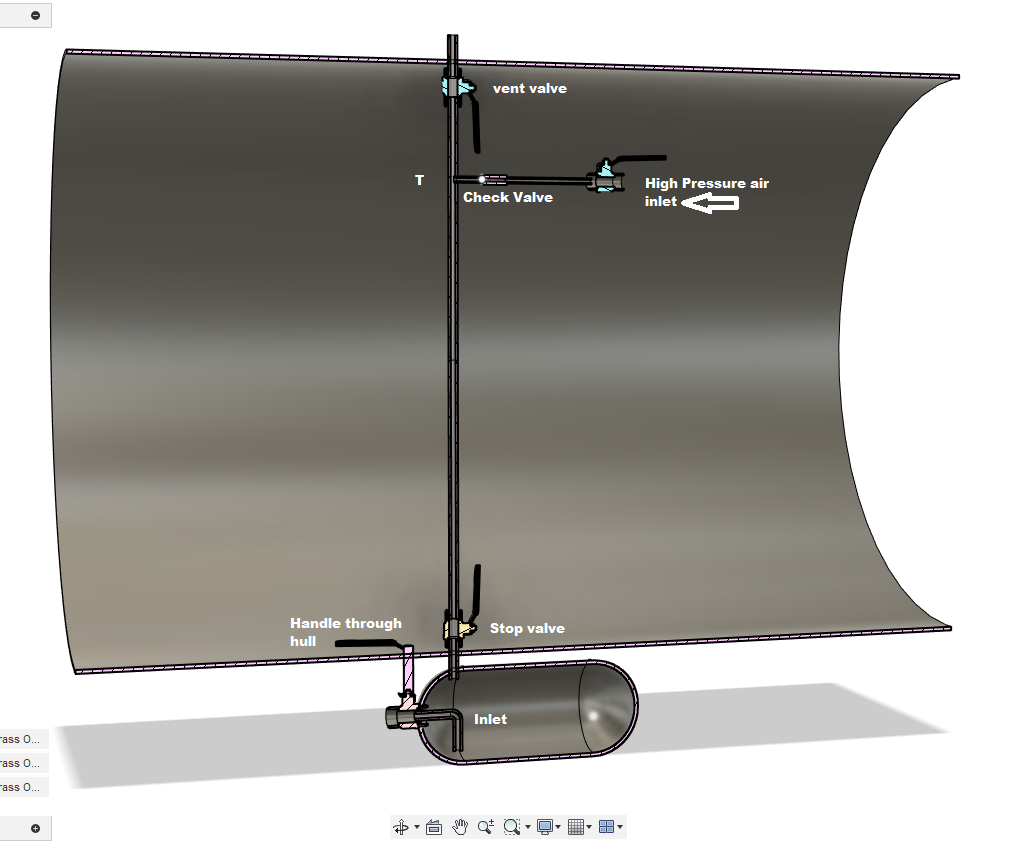

Hi Emile.  Here you are.  More or less. Shown without the bends around the hull.



The vent acts as both vent and high pressure inlet.



PS:  I am meeting up with Antoine tonight.  He is here in Guernsey.


Regards

James







On Sun, 6 Aug 2023 at 22:16, via Personal_Submersibles <personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> > wrote:

Hi,



Can someone provide a sketch of the  K350 hardtank piping? Wonder how the venting is done.

Thanks in advance



Best regards,



Emile D.L. van Essen
