Sub name:	Sharkhunter
Designer:
Owner:		Frank Querzoli
Builder: 	Perry Cubmarine
Description:

2 man, wet submarine

I don't have all of the history of the sub, but
I'll type up and small introduction to send with the photo's.  I was suprised
to find that photo labled Sharkhunter, I thought that some one had beaten me to
it.  The model that I have must be one of the early prototypes, I did find a
copy of that original article listed in your archives (Popular Mechanics) and

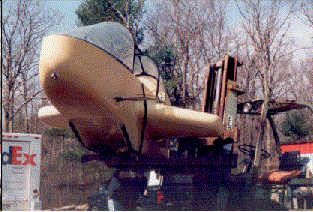

thats the one I have.  The one in your photo is Sharkhunter 2 and it's the
precurser to the Reef Ranger wetsub that spun off from Perry Submersibles a
sale ( I think the Tritech deal).  I have been in contact with someone at that
company and they think that they might even have some old plans and spare
parts.


Frank's Sharkhunter

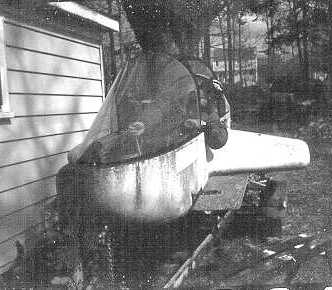

Front view of Sharkhunter, As we found it, pre-restoration,
Frank Querzoli inside, ready for take off.

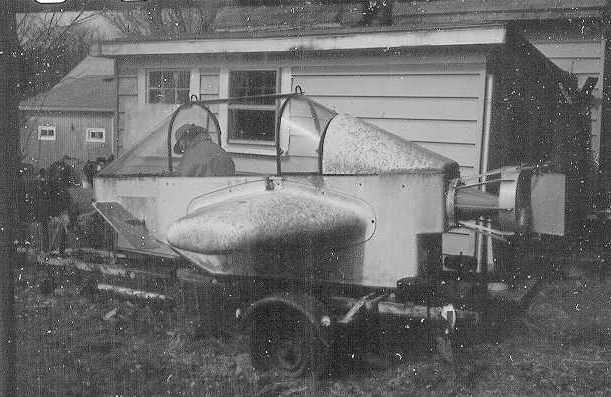

(Profile view of Sharkhunter, As we found it, pre-restoration,
Chris Hugo inside.

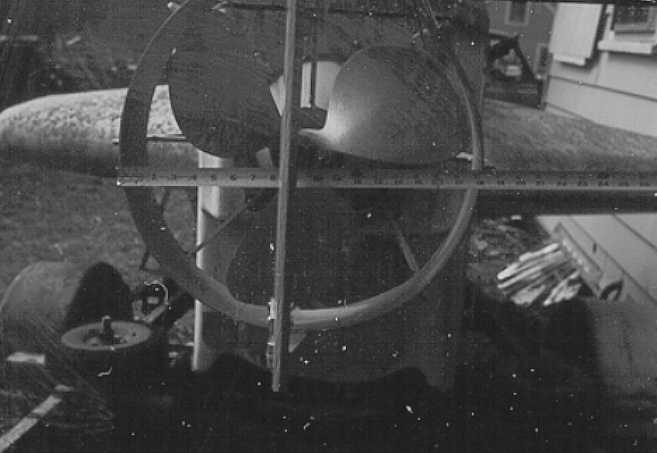

Rear view of Sharkhunter, prop pre-restoration.



Interior Cockpit view of Sharkhunter, pre-restoration,
	-Control stick pulleys and cable
		-side to side rudder
		-forward and back dive plane''
	-Left/Right Ballast tank dump valves-handles with
	 pressure lines/valves underneath
	-Yeah, a capillary depth gauge on the right and a
	 high pressure gauge on the left
	-lower left a sliding magnetic speed control switch, broken

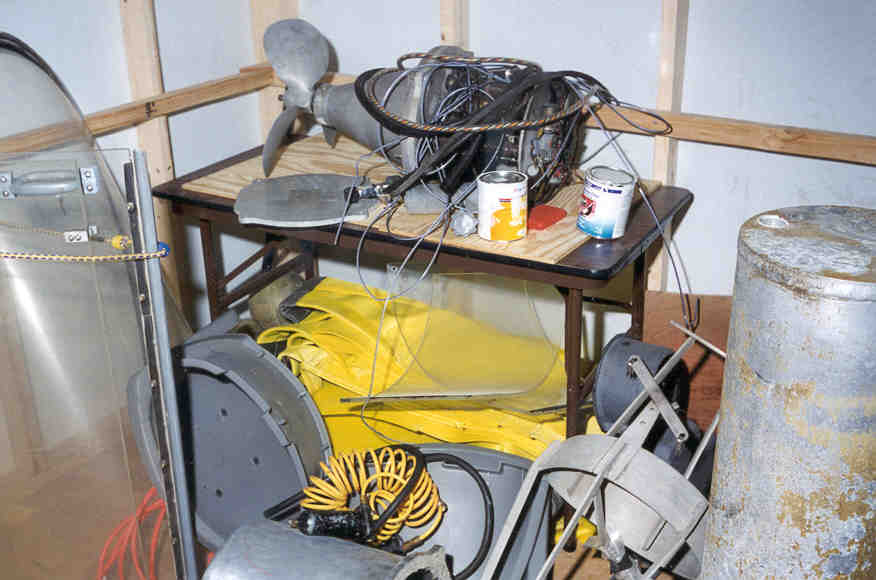

Disassembled



It's one of the early before pictures after we did a hull scrubbing.



It's one of the early before pictures after we did a hull scrubbing.

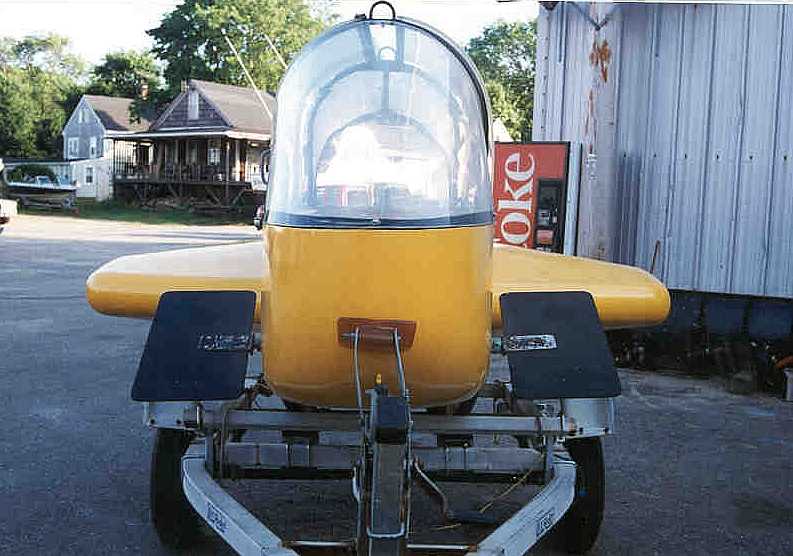

Front view of Sharkhunter, after hull restoration and
on a rebuilt custom trailer.

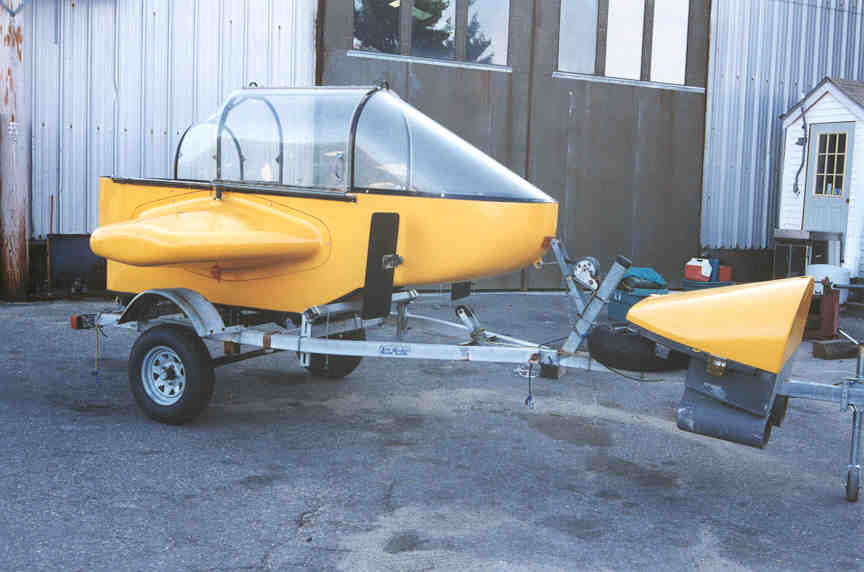

Profile view of Sharkhunter, after hull restoration and on
a rebuilt custom trailer
	-"Q" ballast tank on the trailer tongue goes on the
	 rear, removed for motor and battery pod installation,
	 steel 72's hang in the bottom of the tank to supply
	 the pressure for blowing the ballast and divers air.
	 Also filled with thick plastic balls to add additional
	 buoyancy
	-sliding starboard canopy, port side canopy pops out
	 from brackets in emergency
	-2 Lifting padeyes on framework
	-Ballast tank/wings (removable) have valve on top and
	 exhaust below, also filled with thick plastic
	 balls to add additional buoyancy

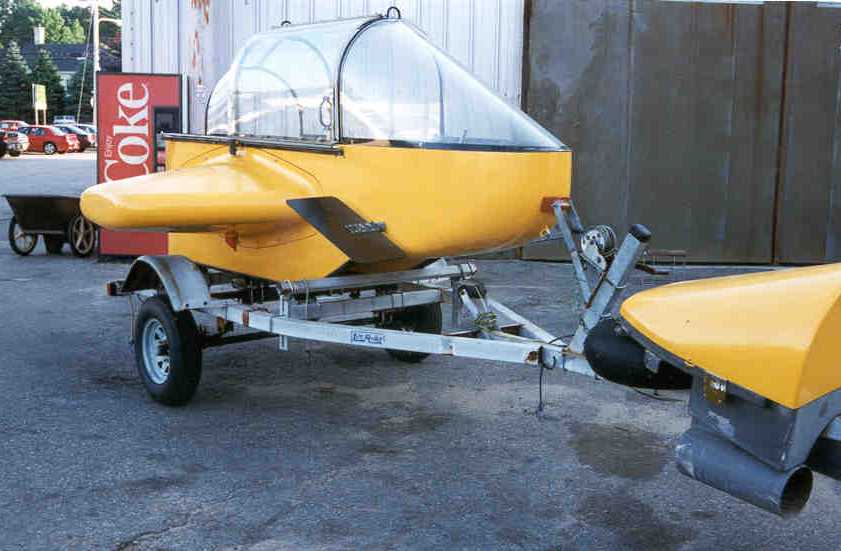

Profile view of Sharkhunter, After hull restoration and
on a rebuilt custom trailer.

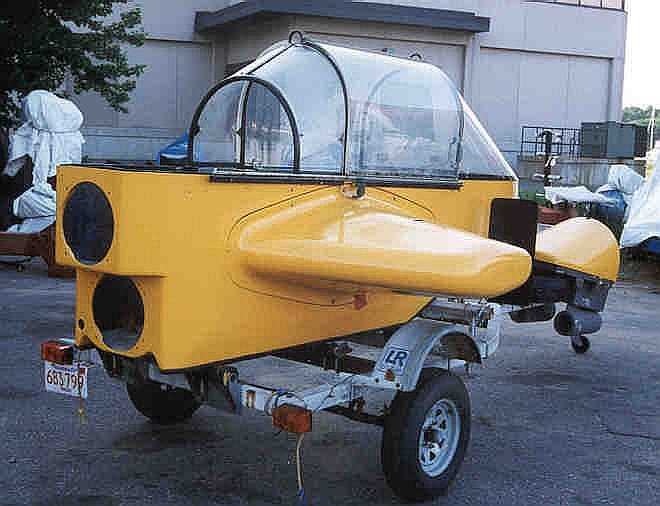

Rear view of Sharkhunter, after hull restoration and on a
rebuilt custom trailer.
	-Electric motor goes on top and battery pod below
	-"Q" tank on top
