[PSUBS-MAILIST] bow window

[Sean T. Stevenson via Personal_Submersibles]

On 2014-11-02 12:06, Vance Bradley via Personal_Submersibles wrote:
> Cliff, I'm thinking full hull diameter, 36" or thereabouts.
> Vance

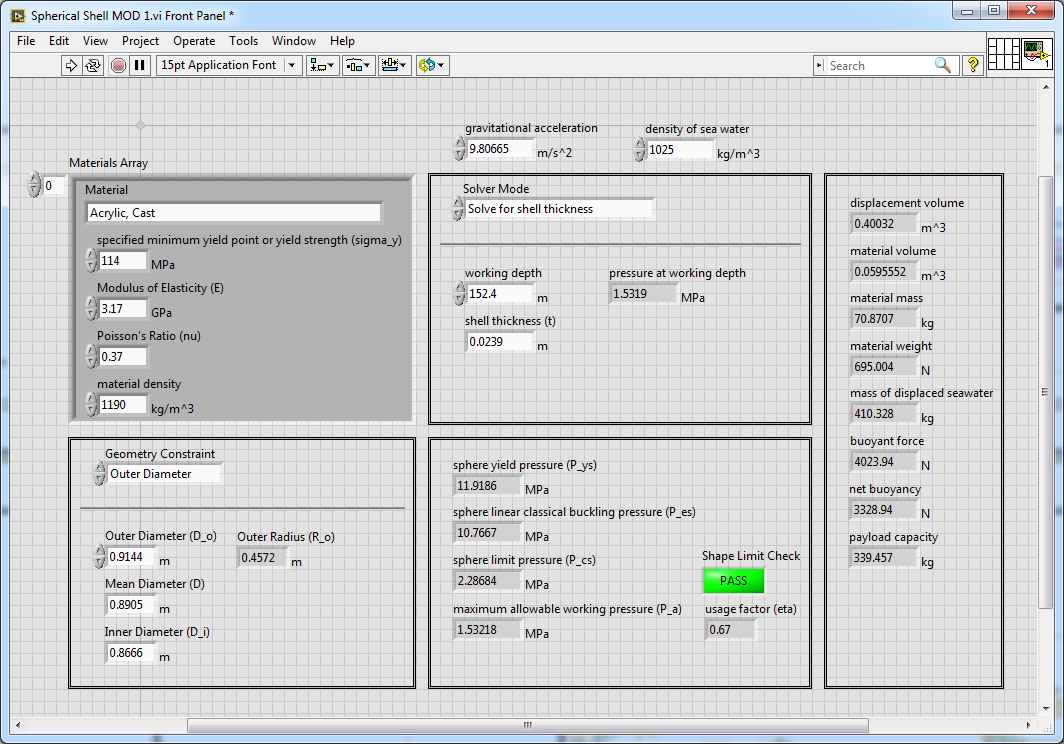

Vance - I was running some hull calcs for Brian Cox, so I ran a calc for
your 36" dome port just to see... Looks like you could get away with one
inch thick material for a 500' test depth.
Also - the calculator is designed for a full shell, so cut all the
weight and buoyancy figures in half for a hemisphere.

Sean



-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20141113/c3004424/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: hbgfiieh.png
Type: image/png
Size: 87800 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20141113/c3004424/attachment-0001.png>
