Sean,

That is a very sexy programme you have there.  What temp do you have as
standard for that calc?

Regards,  Hugh





From: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org]
On Behalf Of Sean T. Stevenson via Personal_Submersibles
Sent: Friday, 14 November 2014 6:45 p.m.
To: Personal Submersibles General Discussion
Subject: Re: [PSUBS-MAILIST] bow window



On 2014-11-02 12:06, Vance Bradley via Personal_Submersibles wrote:

Cliff, I'm thinking full hull diameter, 36" or thereabouts.

Vance

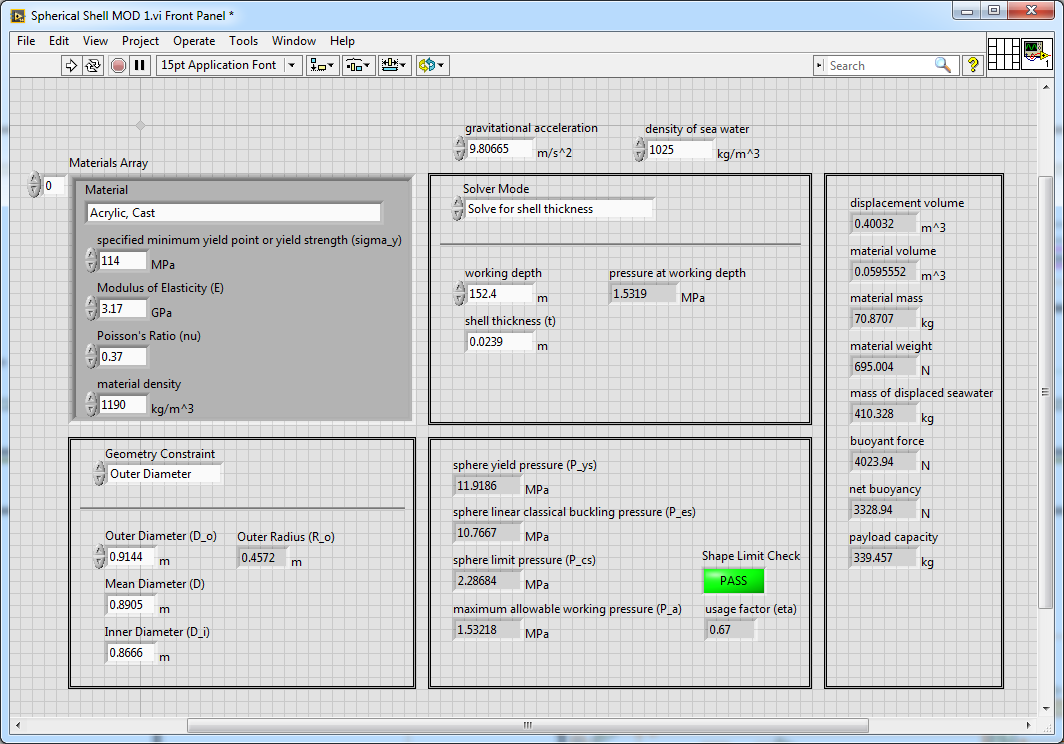

Vance - I was running some hull calcs for Brian Cox, so I ran a calc for
your 36" dome port just to see... Looks like you could get away with one
inch thick material for a 500' test depth.
Also - the calculator is designed for a full shell, so cut all the weight
and buoyancy figures in half for a hemisphere.

Sean
