[PSUBS-MAILIST] minn-kota cabling to hull

[Jon Wallace via Personal_Submersibles]

Hi James,

I am likely to simply end up potting.  Where did you source your
blueglobe's and how much did they cost?

Jon


On 4/23/2015 11:32 AM, James Frankland via Personal_Submersibles wrote:
> Hi jon,

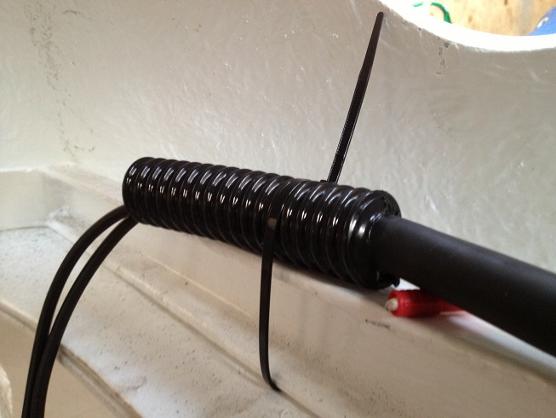

> II found some pics.  First one is of how I potted the join from the
> sub con bulkhead connector.  This is for the lights but the motor is
> the same.  The wires are soldered and insulated.  Then the rubber pipe
> slid over the top and the whole thing filled with epoxy.  I said it
> was basic.

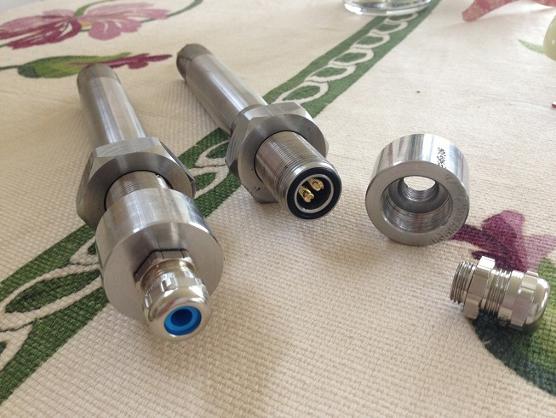

> Also a pic of a possible rotating through hull seal.  I didn't use
> this in the end as I couldn't get the cable onto the copper pins.  If
> I had made flat connectors so I could push them on, it would have
> worked,  I just got fed up and potted it, but I think this idea maybe
> has merit.  Not sure if the oil inside the through hull would affect
> the blue globe. Would need testing.
>
> ​
> ​
>
