[PSUBS-MAILIST] bolt in penetration

Sean T. Stevenson via Personal_Submersibles personal_submersibles at psubs.org
Sat Jan 10 21:22:04 EST 2015


On 2015-01-10 11:51, hank pronk via Personal_Submersibles wrote:
> Sean,
> Thank you, that is helpful.  My idea was to make the insert as tight as possible (sweat it in)  I am not sure if the difference in material would cause a problem though. The idea of seating the port into the shell a good option also.  I am just chewing the fat here, I have enough on my plate but it is fun to think about.  I was wrong about the size, the sphere is 6 feet and I wrote 60 in.  I imagine that kills the rating quite a bit?

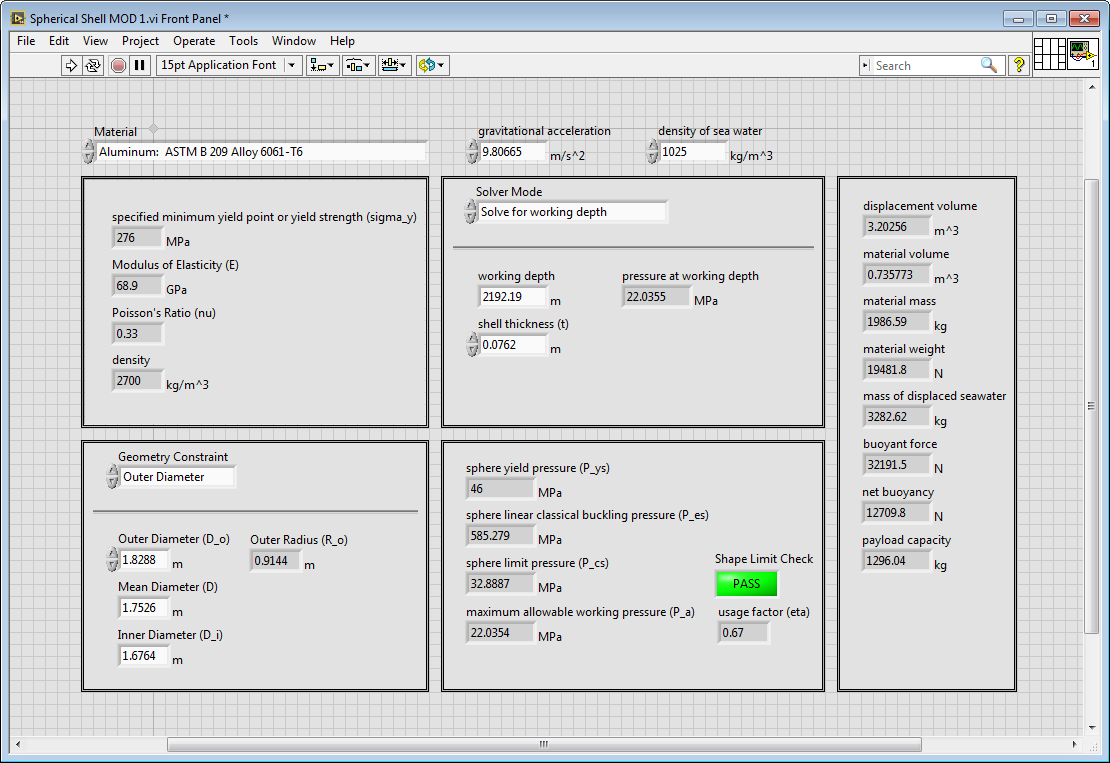

Not that much, although these results are for 6061-T6, which is probably
unlikely.


-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20150110/ca3e42f8/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: jhfcgacg.png
Type: image/png
Size: 55105 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20150110/ca3e42f8/attachment-0001.png>
