[PSUBS-MAILIST] Idea..?

[Alec Smyth via Personal_Submersibles]

Hi James,

I think with the taper, this would tend to push in and jam. The idea is
neat, however, and would probably work fine with a step instead of a taper.
On the other hand, does an O ring sealed through-hull ever fail
catastrophically? I've had the odd drip, but that's all I've bad as I've
seen.

Best,

Alec

On Wed, Jun 17, 2015 at 12:26 PM, James Frankland via Personal_Submersibles
<personal_submersibles at psubs.org> wrote:

> Hi All
>
> Seeing as its a bit quite I thought I would show this idea.  Its super
> simple....
>
> I have been thinking how you could stop a leaking through hull.  Thinking
> of K boat type 5\8th through hulls as in the plans.
>
> I believe Scott had a leak when he did his deep test due to a faulty O
> ring?
>

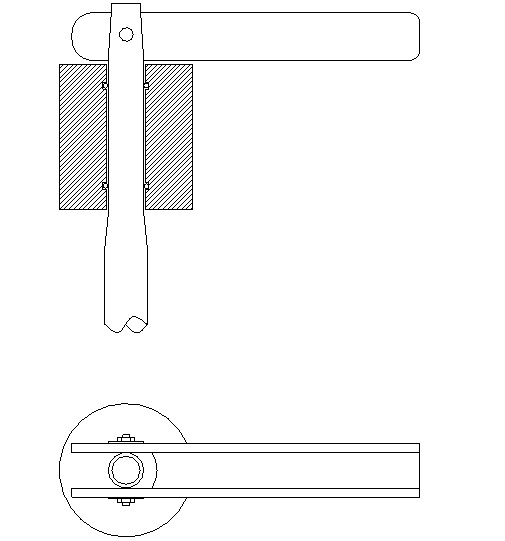

> Anyway, here is my idea.  It would take a little bit more machining, but
> not much.  Machine the 5\8ths bar with a taper on the protruding part and a
> taper on the top to help push the bar through.  (I did that on mine
> anyway).  The handle is made with a cam type end.
>
> If you get a leak, you can pull the handle up.  The bar would be pulled
> up, forcing the taper to jam into the penetrator, hopefully stopping most
> of the leak.  I suppose you could even machine a matching taper into the
> start of the through hull to match?
>
> I suppose the bar could get pushed through and jam on its own.  That's a
> possibility.
>
> Pic attached.
>
> Kind Regards
> James
>
>
> ​
>
> _______________________________________________
> Personal_Submersibles mailing list
> Personal_Submersibles at psubs.org
> http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
>
>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20150617/a338d488/attachment-0001.html>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: jammer.jpg
Type: image/jpeg
Size: 34930 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20150617/a338d488/attachment-0001.jpg>
