[PSUBS-MAILIST] Scrubber Mask

James Frankland via Personal_Submersibles personal_submersibles at psubs.org
Mon May 4 16:21:56 EDT 2015


I updated my site.  In a bit of a rush so the txt at the top I need to
remove.

Also not sure why they links aren't working along the bottom.

http://www.guernseysubmarine.com/Modifications_files/Page1191.htm

On 4 May 2015 at 18:22, Rick Patton via Personal_Submersibles <
personal_submersibles at psubs.org> wrote:

> James,
> Thanks for the picture as a picture is worth a thousand words. I was going
> to do the same thing but was planning on using a mouth piece from a double
> hose regulator as it has the built in check valve for the exhaust but I
> like your idea a lot better as it looks more comfortable and you can
> include the filter to catch any dust!
> PS: you look fine since most of your face is covered!,  just kidding[?]
> Rick
>
>
> On Sun, May 3, 2015 at 11:53 AM, James Frankland via Personal_Submersibles
> <personal_submersibles at psubs.org> wrote:
>
>> Hi All.
>>
>> I was talking with Antoine\Emile the other day about manual scrubbing.
>>
>> I have made a mask which uses a standard 3M dust filter and directs
>> exhaled air into the scrubber.
>>
>> This particular mask has valves so you would breath in through the
>> filters and out through the centre vent.  Filters are not needed.
>>
>> I have added an silicone 02 breathing hose I got of ebay and bolted\glued
>> it through onto the mask.  The hose swivels around so its really
>> convenient.  I attached the hose to the normal scrubber outlet with a
>> suitable piece of pipe which I machined a taper on to push into the outlet
>> hose.
>>
>> It was really simple and works well.  I haven't tested it yet with the
>> scrubber absorbent in but the mask itself seems good.
>>

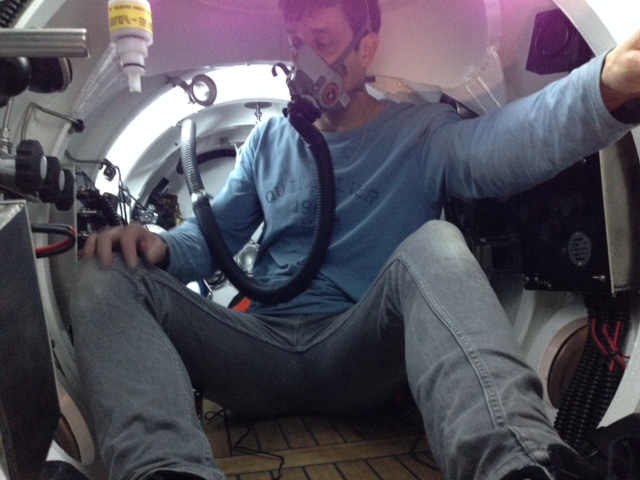

>> I really dislike putting pictures of myself up, but I have to put this
>> very unflattering one on here to demonstrate the device!  For some reason,
>> t​he light makes it look like I have 2 black eyes, which I don't.
>>
>> Kind Regards
>> James
>>
>>
>>
>>>>
>>
