[PSUBS-MAILIST] Gauge for outside viewport?

Wed Oct 7 21:41:04 EDT 2015

Please publish your photos of the mechanical seal, Hank.

Many of us are interested in seeing it.

Tim

From: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org]
On Behalf Of hank pronk via Personal_Submersibles
Sent: October-07-15 11:01 AM
To: personal_submersibles <personal_submersibles at psubs.org>
Subject: Re: [PSUBS-MAILIST] Gauge for outside viewport?

Alec,
I am driving Gamma with two Perry thrusters that have a simple mechanical
seal. I think a Minkota could be modified with a mechanical seal. A new end
cap and a shaft extension would do it. This could be a add on kit for
Psubbers. I can send you pictures of the Perry seal set up.
Hank

  _____

From: Brian Cox via Personal_Submersibles <personal_submersibles at psubs.org
<mailto:personal_submersibles at psubs.org> >;
To: Personal Submersibles General Discussion
<personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> >;

Subject: Re: [PSUBS-MAILIST] Gauge for outside viewport?
Sent: Wed, Oct 7, 2015 2:05:54 PM

Alec,   BTW, that big 12" seawater depth gauge doesn't have a phosphorus
dial, however it is very readable in minimal light and does have a small
reflective strip which runs around the one edge of the numbers.

Brian

--- personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org>
wrote:

From: Alec Smyth via Personal_Submersibles <personal_submersibles at psubs.org
<mailto:personal_submersibles at psubs.org> >
To: Personal Submersibles General Discussion
<personal_submersibles at psubs.org <mailto:personal_submersibles at psubs.org> >
Subject: Re: [PSUBS-MAILIST] Gauge for outside viewport?
Date: Wed, 7 Oct 2015 08:29:07 -0400

Just a follow-up on this. While I'm pretty sure external oil filled gauges
would work outside I find the oil doesn't like staying inside them, so I
ended up bringing the gauges inside the hull. In the end, the majority of my
air system is outside with just the gauges and the BIBS inside the hull.
Apart from hull stops, the valves for operating the sub are outside and
operated via mechanical through-hulls. It's not hard because there's just
three valves total. In my experience most air leaks happen in those valves
that are used routinely, as opposed to hull stops that are left alone. Even
using top quality Swagelok valves, you sometimes have to tighten things up
because a leak develops with use.

One recent design change is that I'm trying air compensation on the
thrusters again. I had originally made them oil compensated because the
thrusters are jettison-able and oil compensation meant one less connection
between thruster and hull, but I'll give air a try because, with big battery
banks and freeboard, I expect this sub to rack up many more hours of running
time than Snoopy did using thrusters just for maneuvering. Air compensation
should mean less brush maintenance.

Best,

Alec

On Wed, Oct 7, 2015 at 6:46 AM, Steve McQueen via Personal_Submersibles
<personal_submersibles at psubs.org <javascript:return> > wrote:

Alec, while I am not 100% sure from the photo I believe these are standard
ss Ashcroft pressure gauges used in industry.  They are normally oil filled
to dampen the needle movement.  The oil is added through a rubber plug
normally that might also act as a compensation diaphragm. Anyway maybe a
vendor to start having discussion with.

Steve

On Sun, Sep 20, 2015 at 11:03 PM, Alec Smyth via Personal_Submersibles
<personal_submersibles at psubs.org <javascript:return> > wrote:

I have an interesting thing to think about and wondered if any of the PSUBS
brain trust might have a suggestion.

One of the simplifications on my new sub is that all HP air lines are
external, aside from the BIBS (which is normally shut off anyway). Thus, I'm

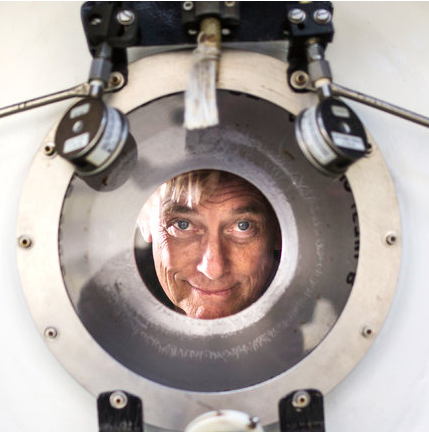

looking for a 3,000-4,000 psi gauge to mount outside a viewport, like in the
Pisces photo that I'll paste below. In case my paste doesn't come through,
it is the one at the top of the following article:
http://www.nytimes.com/2015/09/15/science/piloted-deep-sea-research-is-botto
ming-out.html?_r=1

The first thing that came to mind was to use a SCUBA submersible pressure
gauge, but the problem is these are normally 1 atm dry enclosures of limited
depth rating. There is generally little information posted about how deep
they'll go, but what I did find was mentioned 260 feet for the plastic ones
and 490 feet for the brass variety. This is a 1,000 foot sub.

The second idea was to use oil filled gauges intended for above-water use.
But these generally have considerable bubbles in the oil, are not very good
at keeping the oil inside, and have other hardware not intended to live long
in sea water.

Any suggestions would be most welcome!

Thanks,

Alec

_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org <javascript:return>
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles

_______________________________________________
Personal_Submersibles mailing list
Personal_Submersibles at psubs.org <javascript:return>
http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
