[PSUBS-MAILIST] escape pod

James Frankland via Personal_Submersibles personal_submersibles at psubs.org
Thu May 12 09:19:48 EDT 2016

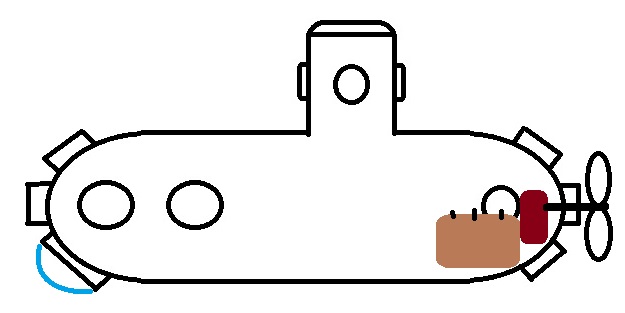

Option 2.  Again, forget about ballast tanks etc.  Boat goes the other way
around.  Viewports added at the new front end.  Lockout hatch becomes
dome\escape port.  Better view.  Engine does not have to slide on rails.
More work.

Basically I am just thinking at the moment. Workshop still being built.
Plenty of time to think but this is as far as ive got.  Obviously viewports
at the new aft end are blanked off where necessary.


​

On 12 May 2016 at 14:08, James Frankland <jamesf at guernseysubmarine.com>
wrote:

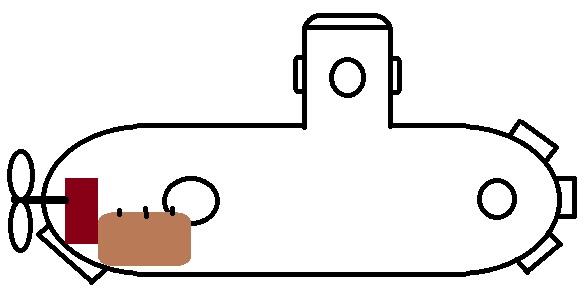

> Idea 1.  Forgetting about ballast tanks, battery pods etc.  Just position
> of engine and viewports.  Engine would be on sliding rail to allow access
> to lockout hatch for emergency escape.  Brown thing is engine, red bit
> gearbox.
>
> Probably the simplest configuration.  (I want to keep this boat super
> simple for speedy build.)
>
> Im at work.  Only got MS paint to draw with....
>
>
>>
> On 12 May 2016 at 14:02, James Frankland <jamesf at guernseysubmarine.com>
> wrote:
>
>>
>> ​Hi Hank,
>>
>> Not 100% sure yet.  I'm just thinking aloud really.   I really don't know
>> what configuration to go for with the new sub.  Priority 1 is to have a
>> diesel engine.
>>

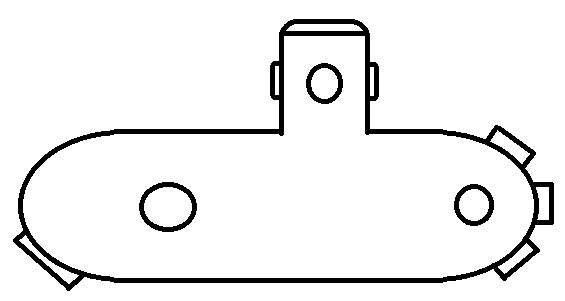

>> This is the current configuration.  Thing bottom left is lockout hatch.
>> Will send some more of my thinkings...
>>
>> On 12 May 2016 at 13:24, hank pronk via Personal_Submersibles <
>> personal_submersibles at psubs.org> wrote:
>>
>>> Hi James,
>>> What do you have in mind for a similar escape pod or similar?
>>> Hank
>>>
>>> _______________________________________________
>>> Personal_Submersibles mailing list
>>> Personal_Submersibles at psubs.org
>>> http://www.psubs.org/mailman/listinfo.cgi/personal_submersibles
>>>
>>>
>>
>
