[PSUBS-MAILIST] Decision time.

[emile via Personal_Submersibles]

Hi James,



Think you are on the right way.

In order to reach some 5 knots, I would add a bow and stern fairing on the waterline (Drebbel style?)

Increases the waterline length and give better directional stability. Euronaut and Drebbel run much metter on the surface when some 2-3 deg. stern heavy

Otherwise it will go nose down and dive under high power…



Both direct drive or generator/ thruster are a good option.

If I build the generator version, I would buy a 24-48 VDC genset . If not available build it from a  5-8 Kw Diesel engine with 1 or 2 big (100-200 Amp)  24VDC truck dynamo’s.

Pod motor of some 4-5 Kw.  I have a steerable rimdrive astern; turns good with only a 35 deg. Angle.  Now 60 Kg thrust at 24 VDC but could be over 100 Kg at 48VDC.(8 KW)



Br. Emile



Van: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org] Namens James Frankland via Personal_Submersibles
Verzonden: maandag 16 april 2018 12:40
Aan: Personal Submersibles General Discussion
Onderwerp: [PSUBS-MAILIST] Decision time.



 Hi All,



I need to make a decision how I am going to do the new sub.  I'm really not sure quite how to do this, so open to thoughts\suggestions.  :)

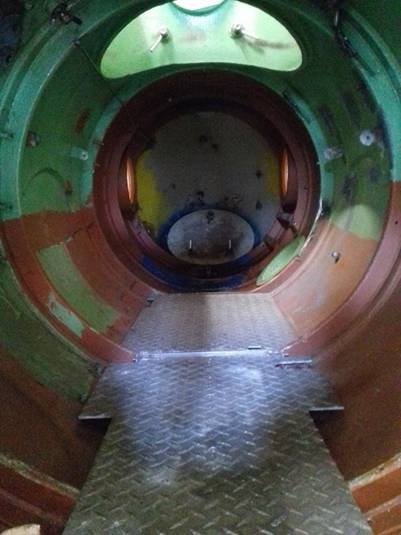

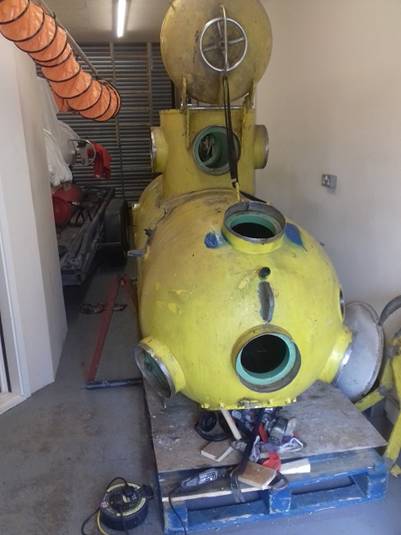

I have cleared the boat out and its completely stripped.  All penetrators etc are removed or loose.  Viewports were a real swine to get out, but they are all done with no damage.



The primary design objectives are:



1. Diesel power for longer surface running.

2. Powerful surface motor.

3. Enclosed tanks for open sea running.

4. Ability to get out on surface and walk around on the deck.



I was initially thinking that I would fit a diesel engine inboard.  However, I am now leaning a different way.



I am thinking I should put a powerful electric motor in a pod at the rear, as a live rudder.  Kittredge style.  It would be able to rotate from rear full 90 degrees left and right, to act as a stern thruster as well.

Motor to have pressure proof housing.  Not compensated.



Diesel generator mounted internally instead of a direct drive.



Kittredge style battery pods.  Slightly bigger.  More batteries, deeper rating.



Drebbel style main tanks.



Any thoughts before I commit?



Many thanks

James






​
​
