Thanks Frank, thats impressive.
I'll be going more the size of the robotic arm I sighted, with your
actuators on it.
I'm building my sub small & the arm will be doubling as a periscope
with a camera mounted on it.
Alan
----- Original Message -----
Sent: Wednesday, March 24, 2010 6:03
PM
Subject: Re: [PSUBS-MAILIST] Robotic
arm

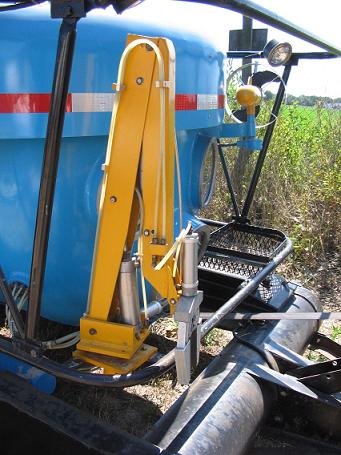

Hi Alan. Here's a pic of Dan Brewer's articulating arm powered by
inexpensive Bimba air cylinders filled with vegetable oil. He has a tiny
electric pump and reservoir inside the sub. Not fancy, but effective. If
memory serves me, the frame was all aluminum channel he scrounged some where,
with stainless pins at the joints. He installed a "disk" type thru-hull with
all the oil line penetrations in one spot. He's a good fabricator and his sub
has quite a few innovative design elements. He took me for a night dive in it
and it was a BLAST !
Frank D.
|
