[PSUBS-MAILIST] Manipulators

[Jon Wallace]

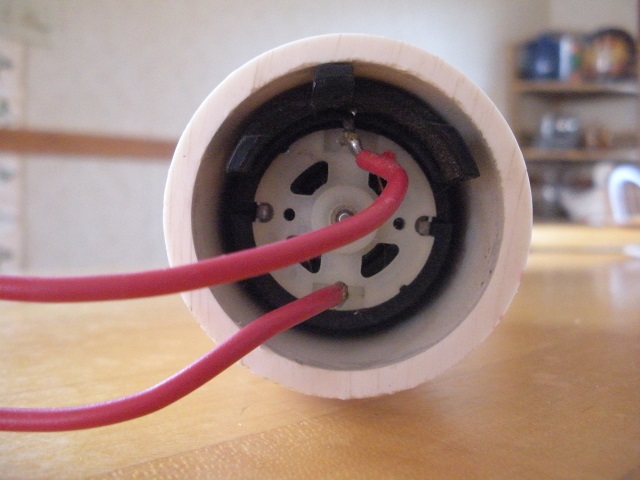

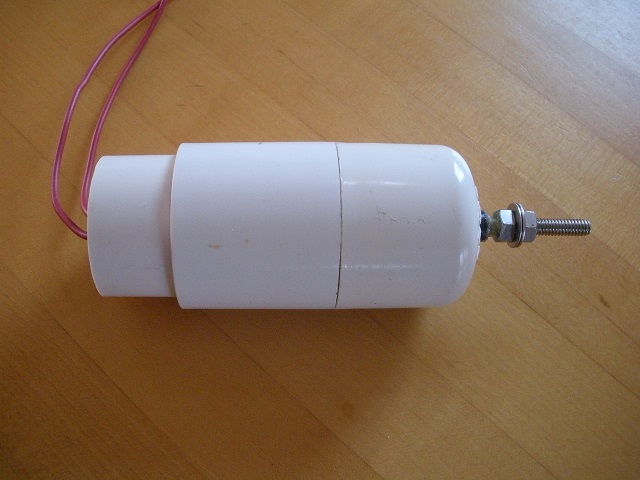

Brian, any cheap Black & Decker cordless screwdriver is reversible by
polarity and fit nicely into 1.5 inch PVC pipe.  See attached photos...a
few years ago I fabricated an "ROV" motor with a 3.6v B&D model 9078.
They are easy to take apart to get the "guts" out.  I sealed the chuck
shaft with a home-made blue globe using some copper pipe and o-rings,
then used epoxy to permanently attach a SS threaded rod into the chuck
so I could screw on the propeller.  At the time I was thinking the PVC
would suffice as a 1-ATM housing but it would definitely be better oil
compensated.

It looks to me like all the cheap cordless screwdrivers are manufactured
at one location and branded accordingly.  The B&D's seem to be a bit
higher priced probably due to name recognition.  EBAY carries these
things from other manufacturers at very inexpensive pricing ($15 US range).

Jon


On 2/6/2014 6:21 PM, brian wrote:
>  I had a similar idea for my front "aileron" flaps.  I was planning on
> embedding a cordless drill ( high torque) , sealing it and filling
> with mineral oil.  It seems like the ones I looked at were all
> mechanically reversible , where they use a gear to reverse.  Although
> I can't be sure because I haven't taken any of them apart yet.  Phil,
> do you know of a particular brand that is reversible by polarity?
>
> Brian Cox
>

-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSCN3073.JPG
Type: image/jpeg
Size: 96736 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20140207/33b5d377/attachment-0002.jpe>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSCN3072.JPG
Type: image/jpeg
Size: 88849 bytes
Desc: not available
URL: <http://www.whoweb.com/pipermail/personal_submersibles/attachments/20140207/33b5d377/attachment-0003.jpe>
