[PSUBS-MAILIST] Gamma bow dome

Adam Lawrence via Personal_Submersibles personal_submersibles at psubs.org
Mon Mar 2 18:41:09 EST 2015


Hi Pete,

I haven't commented on here for 10 years I bet!

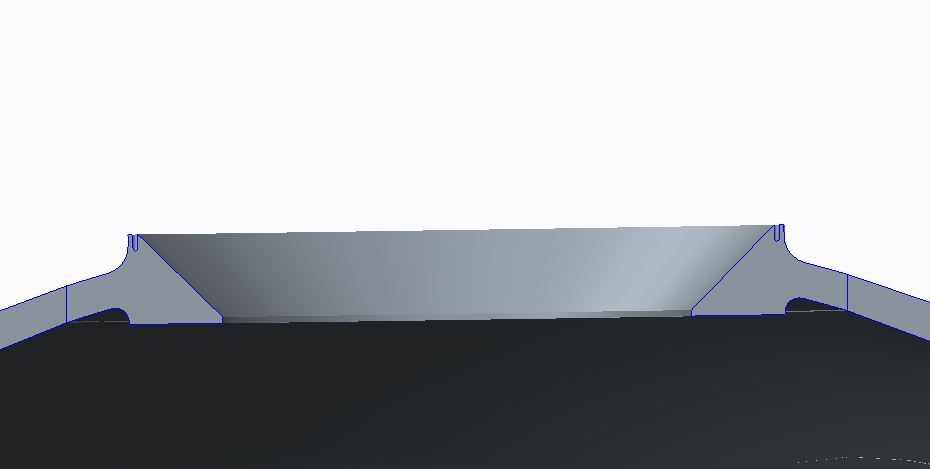

Anyways, here is one approach, you can move the weld away from the port by making the port larger, basically integrating part of the hull into the port. I will attach a screen shot.

Best Regards,

Adam

-----Original Message-----
From: Personal_Submersibles [mailto:personal_submersibles-bounces at psubs.org] On Behalf Of Pete Niedermayr via Personal_Submersibles
Sent: Monday, March 2, 2015 4:22 PM
To: Personal Submersibles General Discussion
Subject: Re: [PSUBS-MAILIST] Gamma bow dome

Would there be an advantage making viewport frames oversized to reduce warping?

Pete
--------------------------------------------
On Sat, 2/28/15, Alan James via Personal_Submersibles <personal_submersibles at psubs.org> wrote:

 Subject: Re: [PSUBS-MAILIST] Gamma bow dome
 To: "Personal Submersibles General Discussion" <personal_submersibles at psubs.org>
 Date: Saturday, February 28, 2015, 12:31 PM

 ThanksAlan
         From: James Frankland
 via Personal_Submersibles
 <personal_submersibles at psubs.org>

 To: Personal
 Submersibles General Discussion
 <personal_submersibles at psubs.org>

 Sent: Sunday,
 March 1, 2015 1:17 AM
  Subject: Re:
 [PSUBS-MAILIST] Gamma bow dome


 Alan,The four
 protrusions are the holes that the four mounting bolts  attach to.  They are inside the hull and attach to dogs on  the inside of the reinforcing ring. almost identical to a k  boat hatch dog setup.RegardsJames

 On Friday, 27 February 2015,
 Alan James via Personal_Submersibles <personal_submersibles at psubs.org>
 wrote:


 James,in your
 retaining ring photo, what are the four protrusions  with holes in,  on the inside of the ring for?Alan

    From: James Frankland
 via Personal_Submersibles <personal_submersibles at psubs.org>
  To: Personal
 Submersibles General Discussion <personal_submersibles at psubs.org>
  Sent: Saturday,
 February 28, 2015 4:49 AM
  Subject: Re:
 [PSUBS-MAILIST] Gamma bow dome


 It took me about 5 mins to do the drawing on  MS paint! I think you mean something  like Stachiw's book, page 524 fig 11.76.  Bottom  drawing.  Probably will work just as well.  No machining  required!


 On 27 February
 2015 at 15:35, Alec Smyth via Personal_Submersibles <personal_submersibles at psubs.org>
 wrote:
 Thanks, you went to some trouble making that  drawing, but it certainly added clarity. In my case the  outside wall of the acrylic is completely square and  there's virtually no gap at all between seat and window,  its literally a few thousandths. I could machine the seat to  take an O-ring groove, as you did with the retaining ring.
 However, PVHO 2-2.11.1 says "As primary seals for  standard window geometries shown in Figs. 2-2.1 through  2-2.4, a soft elastomer compressed between the high pressure  face of the window and retainer ring will be acceptable. The  soft elastomeric seal may take the form of a flat gasket, or  a seal ring with O, U, or X cross section."  Given its so easy to cut out a  circular flat gasket, I think I'll try that first and  see how it goes. If there are nuisance leaks, I could  upgrade to an O ring by machining the appropriate groove,  but I'll try the lazy approach first. These bolt-on  window seats are nice in that they allow for later  modification.

 Best,
 Alec


 On Fri, Feb 27, 2015 at 9:56 AM, James
 Frankland via Personal_Submersibles <personal_submersibles at psubs.org>
 wrote:
 Hi Alec, The epdm
 gasket was really just to relieve stress on the seat of the  dome.  This was with advice from the guy who built the  Canary island subs who came to visit me.  Although of  course it should provide sealing at higher pressure.
  Emile made the dome and mounting
 ring and suggested I would need another seal for low  pressure.  So, I made the low pressure seal an O ring  sitting in a machined groove in the retaining ring.
  See hastily drawn picture.
  The gap where the O ring sits is
 nowhere near as severe as it looks in the picture, which is  of course not to scale or anything.   I would love to say  it was carefully engineered, but im afraid I just winged it  a bit.  To start with the O ring groove was just a  chamfer.  This didn't work as I couldn't get the O  ring to stay in.  Then I machined it for a very small O  ring.  Couldn't get it in.  Eventually, I got a groove  and O ring combination that seemed to work.  There is lots  of silicone grease on all surfaces as well.  It doesn't  leak.  RegardsJames  ​

 ​
 On 27 February 2015 at 14:05, Alec Smyth  via Personal_Submersibles <personal_submersibles at psubs.org>
 wrote:
 Hi James,
 That's some good looking
 hardware! Just a question if I may. Do you have just the  gasket for making a seal, or is there an O-ring as  well?  My project sub  has a bow dome seated in an aluminum ring. Currently the  window is just sitting on a gasket with no O-ring, but  I'm wondering whether to switch to an O ring. The window  seat is 90 degrees square, so one possibility would be to  chamfer the edge of the acrylic and put an O ring in the  angle. That is what I did on Snoopy's hatch dome, it  worked well and is a solution that doesn't require any  changes to the seat. The other option is to put an O ring at  the top of the acrylic and squeeze it with the retaining  ring, but that would mean machining a chamfer into the seat,  and would require machinery larger than what I have here. Or  of course I could do nothing and see if it seals well with  just an EPDM gasket.

 Thanks,
 Alec
 On Fri, Feb 27, 2015 at 8:40 AM, James
 Frankland via Personal_Submersibles <personal_submersibles at psubs.org>
 wrote:
 ​Hi Hank.   Yes,
 agreed, my dome does sit on a gasket.  The actual edge of  the acrylic itself sits on a 1mm epdm gasket that sits onto  the aluminium ring.  That ring bolts to the main  reinforcing ring and has an o ring like you say.  Maybe  this does give it a little bit of  leeway. My dome is off at the moment,  so I will have a look at the weekend and see if I can see  any distortion on the reinforcing ring.  Im pretty sure  there is none, or none that is detectable by the naked  eye\straight ruler.  The alu ring seems to fis to it  perfectly.   I suppose the best  option is like you say, get it machined after welding.  You  wont have to worry at all then.  ​  On 27 February 2015 at 13:23, hank pronk  via Personal_Submersibles <personal_submersibles at psubs.org>
 wrote:


 James,

 I am just assuming it needs to be perfect ? and I can not  imagine that it will not warp at least a small amount.  I  am not experienced with how such heavy material will react.
 Your dome sits on a gasket witch may give you some  forgiveness. Maybe Emile can comment having done this  also.

 Hank--------------------------------------------

 On Fri, 2/27/15, James Frankland via
 Personal_Submersibles <personal_submersibles at psubs.org>
 wrote:



  Subject: Re: [PSUBS-MAILIST] Gamma bow dome

  To: "Personal Submersibles General Discussion"
 <personal_submersibles at psubs.org>

  Received: Friday, February 27, 2015, 7:28 AM



  Do

  you need to go to all that trouble?  When I did mine,  the

  reinforcing ring was milled flat on the seating surface  and

  I just pre-heated it and welded it in.  It was so big  I

  don't think there was any distortion and it  doesn't

  leak. Just thinking of saving you

  what sounds like an expensive job.

  On 27 February 2015 at

  11:45, hank pronk via Personal_Submersibles <personal_submersibles at psubs.org>

  wrote:

  James,



  I am amazed at the equipment some of the big shops have.
 A

  vertical mill is probably the way to go.  I am checking  out

  another option also.  There are machines made to  machine

  pipe flanges that clamp on and are portable.  There is  a

  company in Calgary that specializes in this. I am just  not

  sure yet what the accuracy is yet.  It is nice that I  live

  only 3 hr from a big oil town that caters to the oil

  industry.  You can tell that oil is low, and the shops  are

  slower.  I ordered the ring on a Friday and it was  ready

  Monday.



  Hank    --------------------------------------------



  On Fri, 2/27/15, James Frankland via
 Personal_Submersibles

  <personal_submersibles at psubs.org>

  wrote:







   Subject: Re: [PSUBS-MAILIST] Gamma bow dome



   To: "Personal Submersibles General
 Discussion"

  <personal_submersibles at psubs.org>



   Received: Friday, February 27, 2015, 4:08 AM







   Hi hank,Sounds like



   it will be a good

  modification.  How are they going to



   machine the ring?  Some sort of vertical



   mill?RegardsJames







   On Friday, 27 February 2015, hank pronk via



   Personal_Submersibles <personal_submersibles at psubs.org>



   wrote:



   Today I



   officially took the plunge and removed the forward

  ballast



   tank to install my new bow dome.  After much agony I



   decided to make the change.  I am not enjoying the  sub



   because the forward window arrangement is not ideal  for



   lakes with marginal visibility.  I went to the big

  city



   yesterday and picked up the reinforcing ring and  should

  have



   it fitted in a couple of days.  I am bringing in a

  pressure



   welder to weld the ring and then the sub is off to  the

  big



   city to machine the ring.







   Hank
